Master Total Dynamic Head Calculation with Linquip's Comprehensive Guide

Table of Contents

Introduction

The calculation of total dynamic head (TDH) is a critical aspect of fluid systems design, ensuring optimal performance and efficiency. With a vast range of applications, from water supply systems to industrial processes, understanding TDH is essential for engineers and technicians alike. In this article, we will explore the concept of total dynamic heads and their importance in fluid systems. Additionally, we will introduce Linquip’s Total Dynamic Head Calculator, a powerful tool designed to simplify TDH calculations.

What is Total Dynamic Head?

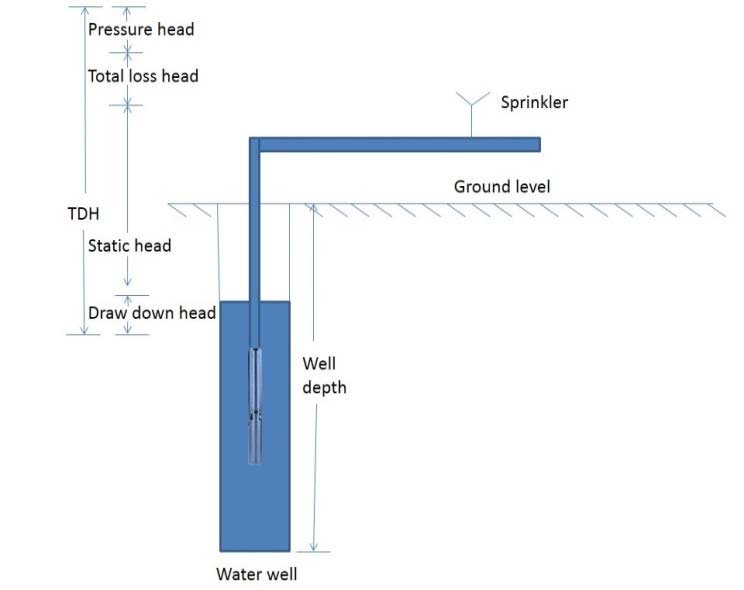

Total Dynamic Head is the total energy required to move fluid from one point to another within a system. It is expressed in units of length (usually meters or feet) and represents the sum of the static head, friction head loss, and pressure head in a fluid system.

Importance of Calculating Total Dynamic Head

Calculating TDH is crucial for several reasons:

Proper pump selection and sizing
Ensuring sufficient pressure at the discharge point
Minimizing energy consumption and costs
Avoiding issues related to cavitation or overpressure
Optimizing system performance and reliability

Factors Affecting Total Dynamic Head Calculation

Three primary factors contribute to the total dynamic head in a fluid system:

Static Head

The vertical distance between the fluid surface at the source and the discharge point
Directly related to the elevation difference in the system

Friction Head Loss

The energy loss due to friction between the fluid and the pipe walls
Depends on factors such as pipe material, diameter, length, and fluid properties

Pressure Head

The pressure difference between the source and discharge points, expressed in terms of fluid column height
Influenced by factors such as valves, fittings, and flow rate

Total Dynamic Head Calculation Steps

Calculate the static head based on the elevation difference between the source and discharge points
Estimate the friction head loss using appropriate formulas and accounting for pipe characteristics and fluid properties
Determine the pressure head by considering the pressure difference between the source and discharge points
Sum the static head, friction head loss, and pressure head to obtain the total dynamic head

To calculate the Total Dynamic Head, engineers, and technicians need to sum the static head, friction head loss, and pressure head for the fluid system under consideration. Accurate calculation of TDH is essential for proper pump selection, avoiding issues like cavitation or overpressure, and minimizing energy consumption and costs.

Feature	Description
Static Head	The vertical distance between the fluid surface at the source and the discharge point
Friction Head Loss	Energy loss due to friction between the fluid and the pipe walls
Pressure Head	The pressure difference between the source and discharge points, expressed in terms of fluid column height
Unit of Measurement	Usually expressed in length units, such as meters or feet
Importance	Critical for proper pump selection, ensuring sufficient pressure, and optimizing system performance
Factors Affecting TDH Calculation	Elevation difference, pipe characteristics, fluid properties, valves, fittings, and flow rate

Feature	Description
Application Areas	Water supply systems, industrial processes, HVAC systems, irrigation systems, and more
Calculation Process	Summation of static head, friction head loss, and pressure head
Reducing Energy Consumption	Accurate TDH calculation helps minimize energy costs and improve efficiency
Troubleshooting Systems	TDH calculation assists in identifying issues within fluid systems
Cavitation Prevention	Proper TDH calculation helps avoid cavitation, protecting pumps and system components
System Reliability	Accurate TDH calculation contributes to improved system reliability and lifespan
Streamlining Pump Selection	TDH calculation simplifies pump selection, ensuring the right pump is chosen for the application

Conclusion

The total dynamic head calculation is vital for the successful design and operation of fluid systems. Understanding the factors that contribute to TDH and employing a reliable calculation tool, like Linquip’s Total Dynamic Head Calculator, ensures optimal system.
