Mastering Heat Transfer Calculations: A Comprehensive Guide with Linquip's Support

Table of Contents

Introduction

Heat transfer is a fundamental process that occurs in various engineering applications, including heating, cooling, and energy conversion systems. Accurate heat transfer calculations are critical for designing and optimizing these systems for optimal performance and efficiency. In this article, we will explore the basics of heat transfer, different types of heat transfer, and how to calculate heat transfer for each type. We will also introduce Linquip, an innovative platform that connects engineers with experts and resources in various engineering fields, including heat transfer and thermal engineering.

Basics of Heat Transfer

Heat transfer is the process of thermal energy moving from a region of higher temperature to a region of lower temperature due to a temperature difference. This movement of energy can occur through various mechanisms, including conduction, convection, and radiation.

Types of Heat Transfer

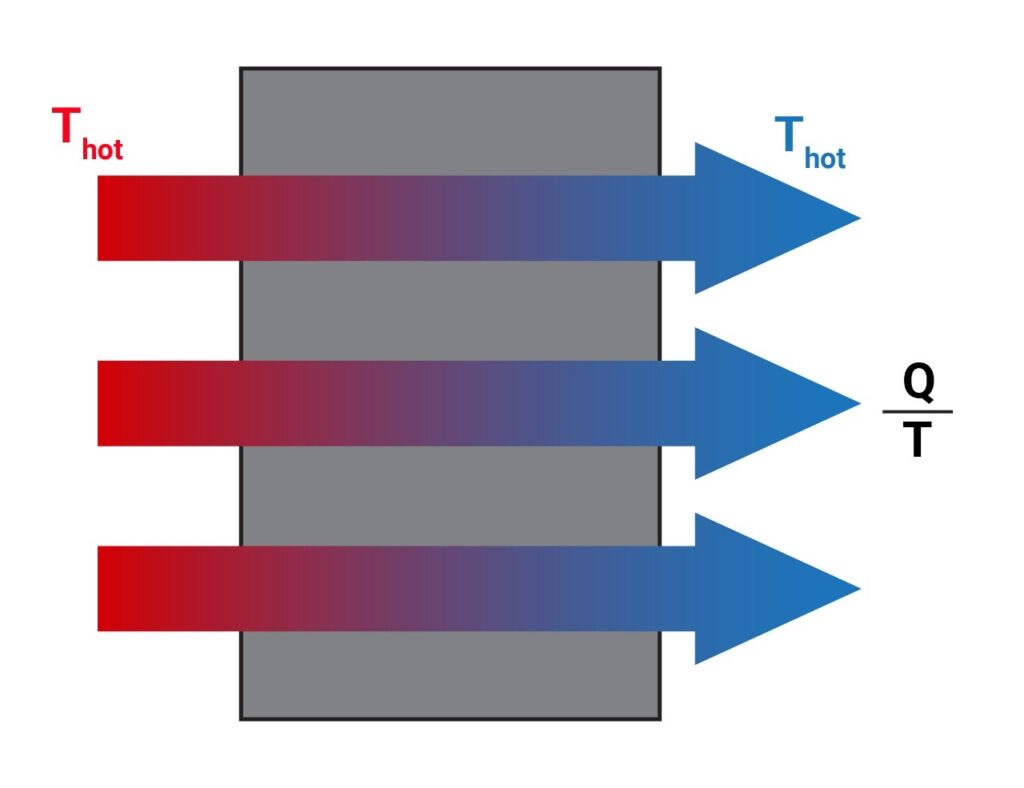

Conduction

Conduction is the transfer of thermal energy through a material without the movement of the material itself. In this process, heat is transferred from one molecule to another within the material due to their direct contact.

Convection

Convection is the transfer of thermal energy through the movement of a fluid (liquid or gas). In this process, heat is transferred by the circulation or movement of the fluid itself, caused by temperature differences within the fluid.

Radiation

Radiation is the transfer of thermal energy through electromagnetic waves. Unlike conduction and convection, radiation does not require a medium to transfer heat and can occur in a vacuum.

Heat Transfer Calculations

Heat transfer calculations involve determining the rate at which thermal energy is transferred between two regions due to a temperature difference. The calculations vary based on the type of heat transfer:

Conduction Calculations

For conduction, the heat transfer rate (Q) can be calculated using Fourier’s law:

Q = k × A × (T1 – T2) / d

Where:

Q is the heat transfer rate (W)
k is the thermal conductivity of the material (W/m·K)
A is the cross-sectional area (m²)
T1 and T2 are the temperatures of the two regions (K)
d is the distance between the two regions (m)

Convection Calculations

For convection, the heat transfer rate (Q) can be calculated using Newton’s law of cooling:

Q = h × A × (T1 – T2)

Where:

Q is the heat transfer rate (W)
h is the convective heat transfer coefficient (W/m²·K)
A is the surface area (m²)
T1 and T2 are the temperatures of the surface and the fluid (K)

Radiation Calculations

For radiation, the heat transfer rate (Q) can be calculated using the Stefan-Boltzmann law:

Q = ε × σ × A × (T1⁴ – T2⁴)

Where:

Q is the heat transfer rate (W)
ε is the emissivity of the surface (dimensionless)
σ is the Stefan-Boltzmann constant (5.67 × 10⁻⁸ W/m²·K⁴)
A is the surface area (m²)
T1 and T2 are the temperatures of the two surfaces (K)

Factors Affecting Heat Transfer Calculations

Several factors can impact the accuracy of heat transfer calculations, including:

Material properties, such as thermal conductivity and emissivity
Surface conditions, such as roughness and cleanliness
Fluid properties, including viscosity, density, and specific heat capacity
Flow characteristics, like flow rate and turbulence
Environmental factors, such as temperature and pressure

Accurate heat transfer calculations require precise knowledge and consideration of these factors.

Importance of Accurate Heat Transfer Calculations

Accurate heat transfer calculations are essential for various engineering applications:

Designing heating and cooling systems for optimal performance and efficiency
Ensuring thermal comfort in buildings and vehicles
Optimizing energy conversion processes, such as power generation and refrigeration
Ensuring the reliability and longevity of electronic devices through thermal management

By mastering heat transfer calculations, engineers can design and optimize systems that effectively manage thermal energy and provide the desired performance and efficiency.

Linquip: Your Go-to Platform for Heat Transfer Solutions

Linquip is a comprehensive platform that connects engineers and designers with experts and resources in various engineering fields, including heat transfer and thermal engineering. By using Linquip, you can access valuable resources, ask questions, and receive expert advice on heat transfer calculations and other engineering challenges. Linquip’s user-friendly platform can help you make informed decisions and find the right solutions for your heat transfer needs.

Advanced Heat Transfer Topics

As you delve deeper into heat transfer and thermal engineering, you can explore more advanced topics that can further enhance your understanding and ability to tackle complex engineering challenges:

Heat Exchangers

Heat exchangers are devices designed to transfer heat between two or more fluids without mixing them. They are widely used in various industries, such as HVAC, power generation, and chemical processing. Understanding the principles of heat exchanger design and performance can help engineers optimize heat transfer processes in various applications.

Phase Change Heat Transfer

Phase change heat transfer involves the transfer of heat during a change in the phase of a substance, such as boiling or condensation. This type of heat transfer plays a crucial role in refrigeration, power generation, and other processes where large amounts of heat must be transferred efficiently.

Transient Heat Transfer

Transient heat transfer, also known as unsteady-state heat transfer, deals with the analysis of heat transfer processes that change with time. Understanding transient heat transfer is essential for designing systems that must respond to changing operating conditions or withstand sudden temperature fluctuations.

Numerical Methods and Simulation Tools

Advanced heat transfer calculations often require the use of numerical methods, such as finite element analysis (FEA) and computational fluid dynamics (CFD), to solve complex problems that cannot be solved analytically. Simulation tools that incorporate these methods can help engineers predict and optimize heat transfer processes in various engineering applications.

Thermal Management in Electronics

As electronic devices become more powerful and compact, thermal management has become a critical aspect of their design and reliability. Understanding the principles of thermal management in electronics, including heat sink design, forced and natural convection cooling, and thermal interface materials, can help engineers ensure the longevity and performance of electronic systems.

By expanding your knowledge in these advanced heat transfer topics, you can further enhance your expertise in thermal engineering and tackle more complex engineering projects. Linquip’s platform is an invaluable resource for learning about these advanced concepts and connecting with experts in the field. With Linquip, you can stay at the forefront of engineering knowledge and find the right solutions for your specific heat transfer challenges.

Aspect	Description
Heat Transfer Fundamentals	Heat transfer is the process of thermal energy moving from a region of higher temperature to a region of lower temperature due to a temperature difference. It can occur through conduction, convection, and radiation.
Conduction Calculation	Q = k × A × (T1 – T2) / d, where Q is the heat transfer rate, k is the thermal conductivity, A is the cross-sectional area, T1 and T2 are the temperatures of the two regions, and d is the distance between the two regions.
Convection Calculation	Q = h × A × (T1 – T2), where Q is the heat transfer rate, h is the convective heat transfer coefficient, A is the surface area, and T1 and T2 are the temperatures of the surface and the fluid.
Radiation Calculation	Q = ε × σ × A × (T1⁴ – T2⁴), where Q is the heat transfer rate, ε is the emissivity of the surface, σ is the Stefan-Boltzmann constant, A is the surface area, and T1 and T2 are the temperatures of the two surfaces.
Factors Affecting Calculations	Material properties, surface conditions, fluid properties, flow characteristics, and environmental factors can impact the accuracy of heat transfer calculations.
Importance of Accurate Calculations	Accurate heat transfer calculations are essential for designing and optimizing heating, cooling, and energy conversion systems, ensuring thermal comfort, and managing thermal energy in various engineering applications.
Advanced Heat Transfer Topics	Heat exchangers, phase change heat transfer, transient heat transfer, numerical methods, and thermal management in electronics are advanced topics to explore in heat transfer and thermal engineering.
Linquip Resources	Linquip connects engineers with experts and resources in various engineering fields, including heat transfer and thermal engineering. It offers valuable resources, expert advice, and access to a network of professionals for addressing engineering challenges.

This table provides an overview of key aspects related to heat transfer calculations, including the fundamentals of heat transfer, calculation methods for conduction, convection, and radiation, factors affecting calculations, the importance of accurate calculations, advanced heat transfer topics, and the resources available through Linquip’s platform. By understanding these aspects, engineers can effectively design and optimize systems to manage thermal energy and achieve desired performance and efficiency.

Conclusion

Understanding the fundamentals of heat transfer and mastering heat transfer calculations are critical for designing and optimizing various engineering systems. By learning about conduction, convection, and radiation, as well as the methods for calculating heat transfer for each type, engineers can effectively manage thermal energy in their designs. Linquip’s platform offers a wealth of resources and connections to experts in the field, ensuring that you have the support and expertise you need to tackle your heat transfer challenges with confidence.
