What is Resonant Frequency?
The resonant frequency is the natural frequency at which a system oscillates with maximum amplitude when subjected to an external force. In other words, it is the frequency at which a system’s response to an external force is at its peak.
Importance of Accurate Resonant Frequency Calculations
Accurate resonant frequency calculations are essential for:
- Designing and optimizing systems for maximum performance
- Minimizing vibrations and noise in mechanical systems
- Avoiding structural damage and failure due to resonance
- Enhancing the performance of electronic circuits and communication systems
Factors Affecting Resonant Frequency
Three primary factors influence resonant frequency:
The mass of a system or its components can impact its resonant frequency. Generally, systems with more massive components exhibit lower resonant frequencies.
Stiffness refers to a system’s resistance to deformation. Systems with higher stiffness typically have higher resonant frequencies.
Damping is the dissipation of energy in a system due to internal or external factors. Higher damping reduces the amplitude of oscillations at the resonant frequency.
How to Calculate Resonant Frequency
The resonant frequency can be calculated using various methods, depending on the specific system and its characteristics. For simple mechanical systems, such as a mass-spring system, the resonant frequency can be calculated using the formula:
f_r = (1 / 2π) * √(k / m)
where f_r is the resonant frequency, k is the stiffness, and m is the mass.
For electrical circuits, the resonant frequency can be calculated using the formula:
f_r = (1 / 2π) * √(1 / (LC))
where L is the inductance and C is the capacitance.
Applications of Resonant Frequency Calculations
Resonant frequency calculations are widely used in various fields, including:
- Mechanical engineering and vibration analysis
- Structural engineering and civil infrastructure
- Electrical engineering and electronics
- Acoustics and audio engineering
- Telecommunications and signal processing
Common Mistakes to Avoid When Calculating Resonant Frequency
To ensure accurate results when calculating resonant frequency, avoid common mistakes such as:
- Using incorrect or incomplete input data
- Neglecting the effects of damping and other factors
- Relying solely on theoretical calculations without considering real-world conditions
- Ignoring the specific requirements and characteristics of your application
Tips for Accurate Resonant Frequency Calculation
To ensure accurate and reliable resonant frequency calculations:
- Verify the accuracy and completeness of your input data
- Consider the unique characteristics and requirements of your application
- Regularly review and update your calculations as system conditions change
- Consult with industry professionals and experts for guidance and insights
- Continuously learn and stay updated on industry trends, technologies, and best practices
How Linquip Can Help You Master Resonant Frequency Calculations
Linquip offers a wealth of resources and support to help you master resonant frequency calculations and related topics. With Linquip, you can:
- Access a comprehensive library of articles, guides, and tutorials on resonant frequency calculations and other essential topics
- Connect with industry professionals and experts to seek guidance, insights, and mentorship
- Leverage a growing community of like-minded individuals passionate about resonance, vibration, and innovation
- Stay informed about the latest trends, technologies, and opportunities in the fields related to resonant frequency calculations
By utilizing Linquip’s platform, you can enhance your understanding of resonant frequency calculations, make informed decisions, and optimize your systems.

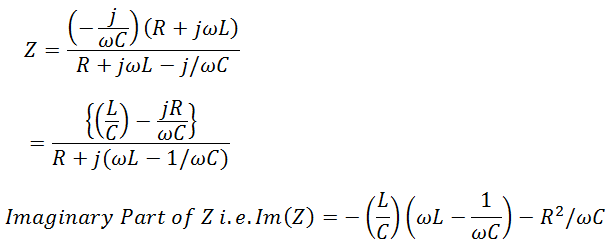

Resonant Frequency Formula and Derivation (Reference: electricalbaba.com)
Examples of Resonant Frequency Calculation
To further illustrate the concept of resonant frequency calculation, let’s consider two examples:
Mechanical System: Mass-Spring System
Suppose we have a mass-spring system with a mass (m) of 2 kg and a spring stiffness (k) of 100 N/m. Using the formula mentioned earlier, we can calculate the resonant frequency (f_r) as follows:
f_r = (1 / 2π) * √(k / m) f_r = (1 / 2π) * √(100 / 2) f_r ≈ 3.53 Hz
Thus, the resonant frequency of this mass-spring system is approximately 3.53 Hz.
Electrical System: LC Circuit
Consider an LC circuit with an inductance (L) of 0.001 H and a capacitance (C) of 0.000001 F. We can calculate the resonant frequency (f_r) using the formula:
f_r = (1 / 2π) * √(1 / (LC)) f_r = (1 / 2π) * √(1 / (0.001 * 0.000001)) f_r ≈ 159.2 kHz
Hence, the resonant frequency of this LC circuit is approximately 159.2 kHz.
Additional Resources for Resonant Frequency Calculation
To further enhance your understanding of resonant frequency calculations and related topics, consider exploring the following resources:
- Textbooks on mechanical vibrations, electrical circuits, and signal processing
- Online courses and lectures on resonance, oscillations, and frequency analysis
- Research papers and technical articles on resonant frequency calculation methodologies and applications
- Industry conferences, workshops, and seminars focused on resonance and vibration control
By deepening your knowledge and staying informed about the latest developments, you can ensure the highest level of accuracy and reliability in your resonant frequency calculations.
|Definition of Resonant Frequency||The natural frequency at which a system oscillates with maximum amplitude when subjected to an external force.|
|Importance of Accurate Calculations||– Optimizing system performance<br>- Minimizing vibrations and noise<br>- Preventing structural damage due to resonance<br>- Enhancing performance of electronic circuits and communication systems|
|Factors Affecting Resonant Frequency||– Mass<br>- Stiffness<br>- Damping|
|Mechanical System Calculation Formula||f_r = (1 / 2π) * √(k / m)|
|Electrical System Calculation Formula||f_r = (1 / 2π) * √(1 / (LC))|
|Applications||– Mechanical engineering and vibration analysis<br>- Structural engineering and civil infrastructure<br>- Electrical engineering and electronics<br>- Acoustics and audio engineering<br>- Telecommunications and signal processing|
|Common Mistakes to Avoid||– Using incorrect or incomplete input data<br>- Neglecting effects of damping<br>- Relying solely on theoretical calculations<br>- Ignoring application requirements|
|Tips for Accurate Calculations||– Verify input data accuracy<br>- Consider application requirements<br>- Regularly review and update calculations<br>- Consult with industry professionals<br>- Continuously learn and stay updated|
|Linquip’s Offerings||– Access to knowledge base of articles, guides, and tutorials<br>- Connection with industry professionals and experts<br>- Networking within a growing community<br>- Stay informed about trends, technologies, and opportunities|
Understanding Damping Ratio and Its Effects on Resonant Frequency
|Definition of Damping Ratio||A dimensionless measure that describes how oscillations in a system decay after a disturbance.|
|Effects on Resonant Frequency||– Higher damping ratios reduce the amplitude of oscillations at the resonant frequency<br>- Lower damping ratios increase the oscillation amplitude|
|Factors Affecting Damping Ratio||– Material properties<br>- System geometry<br>- External factors (e.g., fluid resistance, friction)|
|Importance in Resonant Frequency||– Helps in determining system stability<br>- Assists in minimizing adverse effects of resonance|
|Relationship with Resonant Frequency||While damping ratio affects the amplitude of oscillations at the resonant frequency, it doesn’t directly influence the resonant frequency value itself.|
Advanced Resonant Frequency Calculation Techniques
|Finite Element Analysis (FEA)||A numerical technique that provides detailed information on complex structures, including resonant frequency calculations, by dividing the structure into smaller, manageable elements and solving equations for each element.|
|Experimental Modal Analysis (EMA)||An experimental technique that measures a system’s response to excitation, such as frequency response functions, to determine resonant frequencies and mode shapes.|
|Fast Fourier Transform (FFT)||A mathematical technique used to transform time-domain signals into frequency-domain signals, enabling identification of resonant frequencies in measured data.|
|Transfer Function Analysis||A mathematical representation of the relationship between a system’s input and output, often used to determine resonant frequencies in dynamic systems.|
By exploring and applying these advanced techniques, you can obtain more accurate resonant frequency calculations for complex systems and enhance your understanding of resonance-related phenomena.
Resonant frequency calculations play a critical role in designing, optimizing, and maintaining systems across various scientific and engineering disciplines. By understanding the factors affecting the resonant frequency and leveraging appropriate calculation methods, you can achieve optimal system performance and avoid potential issues related to resonance. With the support and resources provided by Linquip, you can master the intricacies of resonant frequency calculations and stay at the forefront of industry trends and innovations.
Download PDF for Mastering Resonant Frequency Calculation
You can download the PDF format of this post from the link provided here.
Buy Equipment or Ask for a Service
By using Linquip RFQ Service, you can expect to receive quotations from various suppliers across multiple industries and regions.
