What is Industrial Valves? Working Principles & Application

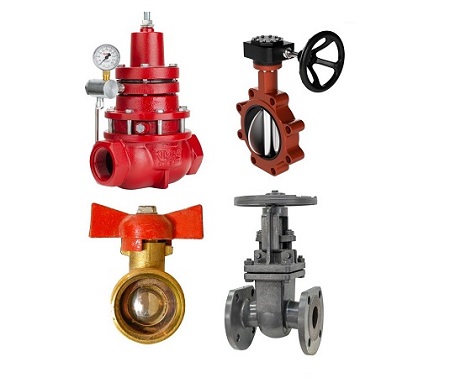

A valve is a device or natural object that regulates, directs, or controls the flow of a fluid (gases, liquids, fluidized solids, or slurries) by opening, closing, or partially obstructing various passageways. Industrial valves are used to handle high pressure, either from fluid or gas, and to last through years of use in harsh environments.

Valves are mechanical devices that control the flow and pressure within a system or process. They are essential components of a piping system that conveys liquids, gases, vapors, slurries, etc. Outside the home, industrial valves are built to control processes. Most utilities, from water to oil and gas, wouldn’t be able to function without heavy-duty, industrial-strength valves. So now that you know the importance of industrial valves, let’s get to know their different types, features, and usability. Follow this new blog in Linquip to find out more.

Need industrial equipment, parts, or services? Submit an RFQ and get quick quotes.

Get a Quote

Need industrial equipment, parts, or services? Submit an RFQ and get quick quotes.

Get a Quote

Valve Subcategories

Watch a video about Valve
0

Top Devices in Valve

RF VALVE Electric Pinch ValvesElectric Pinch Valves
RF Valves, Inc.
RF Valves, Inc.
View Product
Foshan Bowah Technology Co.,Ltd
Foshan Bowah Technology Co.,Ltd
View Product
Geko flow control technology(Changzhou) Co. Ltd
Geko flow control technology(Changzhou) Co. Ltd
View Product
Shanghai Petro Valves Factory
Shanghai Petro Valves Factory
View Product
Your Devices Here!
Your devices can be listed among the top devices in this category.
Get Started

Related RFQs

Swing-Flex® Check Valve

LNQ-23051249

Swing-Flex® Check Valve VM-500A-S

Check ValveQuantity: 5
North Carolina, United States
Buy Equipment
View Details

Plug Valve

LNQ-23051246

Plug Valve CV500

Gas TurbineQuantity: 2
Florida, United States
Buy Equipment
View Details

Set Of 2 Dresser VP813G Adj Ring Pin

LNQ-23051196

Set Of 2 Dresser VP813G Adj Ring Pin VP813G

Valve Parts & ComponentsQuantity: 2
ar-Riyad, Saudi Arabia
Spare Part
View Details

Flowserve 1 4446RTSW CM6195 R2 Manual Steel Socket Weld Ball Valve 1in

LNQ-23051101

Flowserve 1 4446RTSW CM6195 R2 Manual Steel Socket Weld Ball Valve 1in 1 4446RTSW CM6195 R2

Ball ValveQuantity: 1
Georgia, United States
Buy Equipment
View Details

Fisher TYPE 667 Size 45i Pneumatic Valve Actuator

LNQ-23051047

Fisher TYPE 667 Size 45i Pneumatic Valve Actuator TYPE 667

Valve Parts & ComponentsQuantity: 2
Lagos, Nigeria
Spare Part
View Details

Metso RKW-361XZ Jamesbury Butterfly Valve Repair Kit

LNQ-23051025

Metso RKW-361XZ Jamesbury Butterfly Valve Repair Kit RKW-361XZ

Valve Parts & ComponentsQuantity: 6
Istanbul, Turkey
Spare Part
View Details

Knife Gate

LNQ-23051015

Knife Gate VAG ZETA® Knife Gate Valve with pneumatic actuator (Festo DLP)

Knife gate valveQuantity: 6
Ulaanbaatar, Mongolia
Buy Equipment
View Details

Woodward TM 25 LP 9905-657 Proportion​al Actuator 4.8/11.7v-​dc

LNQ-23041286

Woodward TM 25 LP 9905-657 Proportion​al Actuator 4.8/11.7v-​dc TM 25 LP 9905-657

Valve Parts & ComponentsQuantity: 1
Ajman, United Arab Emirates
Spare Part
View Details
See All
Are you a supplier?
Generate leads, provide quotes and capture new businesses
Get Started

Parts of Industrial ValvesParts of Industrial Valves | Linquip


Despite high levels of variation, most industrial valves can be broken down into the same basic components which are as follows

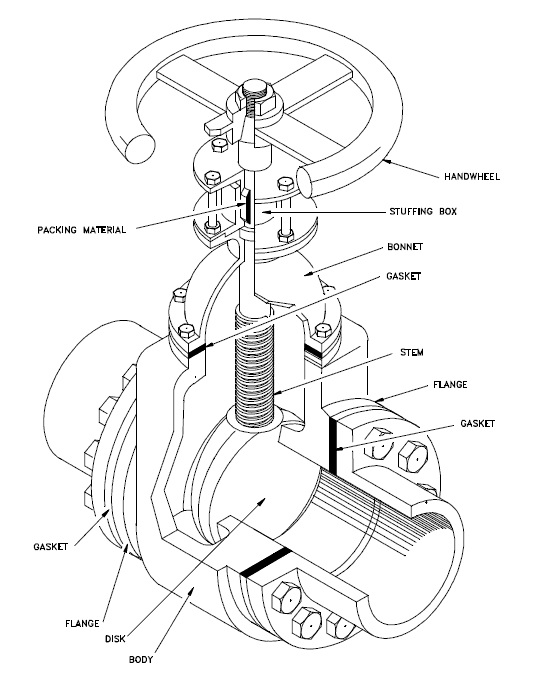

  • Valve Body: The body, or enclosure of the valve, is often the largest component. Material flows through the body between the ports, and all other valve components connect to it. For example, a standard gate valve has three holes: the upstream port, where material flows into the body; the downstream port, where material leaves the body, and another hole on top to connect the bonnet and actuator. Of course, many valves have three or more ports as well, but the basic configuration is similar.
