Knife Gate Valves: Working Principle & Function | Linquip
Knife gate valve

Knife Gate Valves: Working Principle & Function

Knife Gate Valves are generally employed in systems with high suspended particle concentrations for on-off and isolation operations. Knife gate valves come in handy when dealing with slurry, viscous, corrosive, or abrasive fluids. In the fully open position, the valves have a little pressure drop, are easy to use, lightweight, and cost-effective. A knife gate valve cuts through heavy liquid blockages with a blade, whereas a slide gate valve utilizes a slide plate to manage better or regulate the flow of dry bulk material. Knife gate valves were designed specifically for the pulp and paper sector.

Need industrial equipment, parts, or services? Submit an RFQ and get quick quotes.

Get a Quote

Need industrial equipment, parts, or services? Submit an RFQ and get quick quotes.

Get a Quote
Watch a video about Knife gate valve
0

Top Devices in Knife gate valve

VAG ZETA® Knife Gate Valve with pneumatic actuator (Festo DLP)VAG ZETA® Knife Gate Valve with pneumatic actuator (Festo DLP)
VAG Group
VAG Group
View Product
RF VALVE Electric Pinch ValvesElectric Pinch Valves
RF Valves, Inc.
RF Valves, Inc.
View Product
VAG ZETA® ANSI XL Plattenschieber mit HandradVAG ZETA® ANSI XL Plattenschieber mit Handrad
VAG Group
VAG Group
View Product
VAG ZETA®control Knife Gate Valve for air regulation, with handwheelVAG ZETA®control Knife Gate Valve for air regulation, with handwheel
VAG Group
VAG Group
View Product
VAG ZETA® Knife Gate Valve with pneumatic actuator - double actingVAG ZETA® Knife Gate Valve with pneumatic actuator - double acting
VAG Group
VAG Group
View Product
VAG ZETA® Knife Gate Valve with electric actuatorVAG ZETA® Knife Gate Valve with electric actuator
VAG Group
VAG Group
View Product
VAG EROX®plus Penstock Shut-off and control valve with self-contained frame design (WT-version)VAG EROX®plus Penstock Shut-off and control valve with self-contained frame design (WT-version)
VAG Group
VAG Group
View Product
Your Devices Here!
Your devices can be listed among the top devices in this category.
Get Started

Related RFQs

Knife Gate

LNQ-23051015

Knife Gate VAG ZETA® Knife Gate Valve with pneumatic actuator (Festo DLP)

Knife gate valveQuantity: 6
Ulaanbaatar, Mongolia
Buy Equipment
View Details

Knife gate valve category

LNQ-23031063
Knife gate valveQuantity: 2
Western Australia, Australia
Buy Equipment
View Details

Knife gate valve

LNQ-22111374

Knife gate valve Clarkson Figure PCS17 Perimeter seal

Knife gate valveQuantity: 8
Jakarta, Indonesia
Buy Equipment
View Details

WAFER STYLE KNIFE GATE VALVE

LNQ-22091009

WAFER STYLE KNIFE GATE VALVE EX (SER.10)

Knife gate valveQuantity: 1
Florida, United States
Buy Equipment
View Details

Gate valve

LNQ-21121145

Gate valve Isogate® WB knife gate valves

Knife gate valveQuantity: 1
Korea South
Buy Equipment
View Details

Knife gate valve

LNQ-21121140

Knife gate valve Knife gate valve

Knife gate valveQuantity: 1
Korea South
Spare Part
View Details

Knife Gate Valve

LNQ-21121003

Knife Gate Valve LVC Figure 93

Knife gate valveQuantity: 1
Mexico
Buy Equipment
View Details

Knife Gate Valve

LNQ-21081021

Knife Gate Valve HERA-BDS

Downstream ValveQuantity: 1
United States
Spare Part
View Details
See All
Are you a supplier?
Generate leads, provide quotes and capture new businesses
Get Started



Function of A Knife Gate Valve | Linquip

Cross section of knife gate valve (Reference: avkvalves.eu)

What is Knife Gate Valve?

Knife gate valves are primarily used for on-off and isolation functions in systems with a high suspended solids concentration. Knife gate valves are particularly useful when dealing with slurry, viscous, corrosive, or abrasive fluids. The valves have a modest pressure drop in the fully open position, are simple to operate, have a light weight, and are cost-effective.

Function of A Knife Gate Valve

Knife gate valves get their name from their ability to cut through solid-containing mediums. They operate by elevating a circular or rectangular gate out of the media's path. Knife gate valves are commonly utilized when a straight-line fluid flow with minimal restriction is required. The sealing surfaces between the gate and seats are flat.

Knife gate valves were created with the pulp and paper industry in mind. Stringy pulp impinged between the wedge and seat of a standard gate valve, blocking flow shut-off.

A knife gate valve allows thick media to flow freely over soft seals without being obstructed. The material is chopped up as it passes through the valve, which is how they work. Knife gate valves are now used in a variety of processing plants across the world and are available in a variety of sizes. A thick media flow such as grease, oils, slurry, paper pulp, and waste water can be handled easily with this valve. Knife gate valves have low-pressure restrictions due to this and are designed to seat the blade into a soft seal without causing any disruption.

Working Principle of A Knife Gate Valve

Although the knife edge valve and the butterfly valve have similar appearances, their operating principles are vastly different. The valve disc in a butterfly valve swivels around any fixed axis, performing the valve's opening and closing functions. In the case of a knife edge valve, however, the disc is replaced by a gate that slides up and down to open and close the valve. The gate's edge is sharp enough to easily pierce the flowing media before taking its seat and closing the valve. The viscous flowing fluid may wedge between the edge of the gate and the seats if the gate's edge is not sharpened. This may or may not include effective valve sealing, causing the flow to be hampered. The following diagram depicts the overall operation of the knife edge valve, which was previously discussed.

Working Principle of A Knife Gate Valve | Linquip

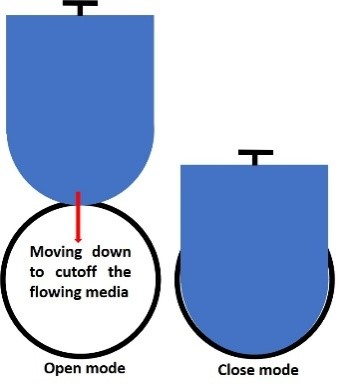

Schematic view of working principle of a knife gate valve (Reference: engineeringlearner.com)

Types of Knife Edge Gate Valve

The knife edge valve, on the other hand, is a sort of parallel gate valve in and of itself, but it can be further classified based on its shape, actuation, and materials. Knife edge valves come in two basic shapes: round and square, as seen in the diagram below. The shape of the gate's knife edge varies depending on the valve type; for example, a circular valve uses a circular edged gate, whereas a square valve has a straight edged gate.

Types of Knife Edge Gate Valve | Linquip

Various types of knife gate valves based on the shape (Reference: engineeringlearner.com)

The knife edge valve can be classified into three types based on how it is operated: manual, electrical, and mechanical. The manual type uses a hand wheel, the electric type uses a stepper motor, and the mechanical type uses a pneumatic cylinder. The valve body and gate are made of stainless steel (SS304 and SS316). It is, however, sometimes manufactured of mild steel to save money.

You can find a great deal of Knife Gate Valve Companies and Manufacturers in Linquip, along with expert Service Providers.

Advantages and Disadvantages of Knife Gate Valves

Advantages

Knife gate valves are common because they are low-cost, easy-to-use, and portable. They can also be found in a wide range of businesses and processes. Knife gate valves have a sharp edge that seals the pulp by cutting through it. In applications that require slurry, viscous fluids, and other systems where collision is a concern, the knife gate valve has proven to be highly effective.

Disadvantages

Knife gate valves should be used only for applications requiring a completely open or completely closed position and should not be used to regulate flow unless specifically designed for that purpose. When fluid presses against a partially closed gate, a vibration gradually erodes the disc and seat.

Applications of Knife Gate Valves

A knife gate valve can be found in various processing sectors. Larger sizes are offered for thicker flows of heavy oils, slurry, light grease, varnish, pulp, and wastewater. Knife gate valves, on the other hand, have low-pressure limitations.

Linquip offers a wide variety of Distributors, Experts, and Equipment for Sale of Knife Gate Valves.

FAQs about Knife Gate Valve

  1. What is the purpose of a knife gate valve?

A knife gate valve allows thick media to flow freely over soft seals without being obstructed. The material is chopped up as it passes through the valve, which is how they work. Knife gate valves are now applied in a variety of processing plants across the world and are available in a variety of sizes.

  1. What is the difference between a knife gate valve and a gate valve?

The most significant distinction between these two types of valves is that gate valves are manufactured to ANSI specifications, whereas knife gate valves are built to TAPPI specifications. A v-ring packing set seals the shaft attached to the gate on a gate valve, whereas a packing gland seals around the gate on a knife gate valve.

  1. Where are knife gate valves used?

Knife gate valves are used in wastewater treatment plants, chemical plants, mining, cement plants, and a variety of other industrial applications, whereas gate valves are used in drinking water mains, distribution networks, and pump stations.

  1. What is the difference between a globe valve and a gate valve?

Gate valves: these valves are used to control the flow of water. Globe valves are used to control the flow of water by starting, stopping, and regulating it. The spherical valve body shape that forms around the plug/disc stopper gives it its name.


Notice: Linquip uses cookies to provide necessary website functionality, improve your experience and analyze our traffic. By using our website, you agree to our Privacy Policy and our Terms of Use.
