The 10 Best Well Pump in 2023 – The majority of residents in urban and suburban regions have almost continual access to drinkable and clean water. However, millions of places in more rural regions rely on wells for their water supply. After drilling or excavating a well, an electromechanical piece of equipment called a well pump is installed. The water from your well is pumped into your home by it. Water from your well is forced through a pipe or jet by an impeller or centrifugal pump that is powered by an electric motor.
This post produces a collection of data and business summaries for some of the best well pumps in 2023. You are also encouraged to visit the Linquip website to learn more about these pumps, as well as to find providers of additional industrial and commercial items. You can also visit our Well Pumps Suppliers and Companies to find out a complete list of well pump suppliers and products.
How We Selected The 10 Best Well Pump in 2023
Choosing the best well pump for your needs can be a daunting task, especially with so many options available on the market. That’s why we at Linquip have done the hard work for you and compiled a list of the 10 best well pumps in 2023 based on various criteria. Here’s how we picked them:
- We analyzed more than 10 webpages and hundreds of products and reviews from different sources, such as Amazon, Home Depot, Lowes, Walmart, and others. We looked at the features, specifications, ratings, feedback, and prices of each product and compared them with each other.
- We consulted with our experts, who have years of experience and knowledge in the field of water pumps and well systems. They gave us their professional opinions and recommendations on the best well pumps for different applications and situations.
- We also considered our previous experiences and customer testimonials from using and installing well pumps. We took into account the reliability, durability, performance, and efficiency of each pump and how they met our expectations and needs.
- We ranked the products based on their overall quality, value, and suitability for various well types and depths. We also considered the availability, warranty, and customer service of each product and brand.
Based on these factors, we selected the 10 best well pumps in 2023 that we believe will provide you with the best water supply for your off-grid or rural home. We hope that this list will help you make an informed decision and find the perfect well pump for your needs.
Fundamentals of Well Pumps
Various Well Pump Types
There are literally hundreds of subcategories and styles within the three main types of wells. Thankfully, there are just three types available for contemporary off-grid use.
Pumping Water by Hand
Manual well pumps are affordable, reliable, and offer a usable water supply. They use just their muscles to extract water from your well shaft utilizing simple mechanical principles.
They also give folks who want to live more sustainably in an off-grid house a pleasantly pastoral utilitarian tool.
Sadly, they only work effectively in particular climates and shallow wells. Most hand pumps can only raise water to a maximum of 25 feet. There are hand pumps made specifically for deep wells, but they are huge and typically more expensive than a solar pump, which is far more powerful.
A hand pump might be a fantastic alternative if you have a shallow, productive well that is not at risk of freezing. If not, you ought to continue using an electric water pump.
Pumps With Surface Mounts
A surface-mounted pump can be the cheapest and most convenient choice if you have a shallow well. Surface-mounted well pumps come in two primary categories:
- Pump, Centrifugal
- Pump, Jet
Centrifugal pumps generate suction by using the rotational energy of a rotating rotor. In your house or a storage tank, this pulls water up from your well. Although it has a practical design, it needs regular maintenance.
A centrifugal motor is used by jet pumps but in a unique way. Suction is produced by a pressure imbalance brought on by the force of the rotating rotor. The water in your well is then drawn up into a storage tank by this suction.
With a few adjustments, a jet pump may be utilized for a deep well. Its inefficiency as compared to a true submersible pump is the issue. They are much louder and need far higher surge requirements.

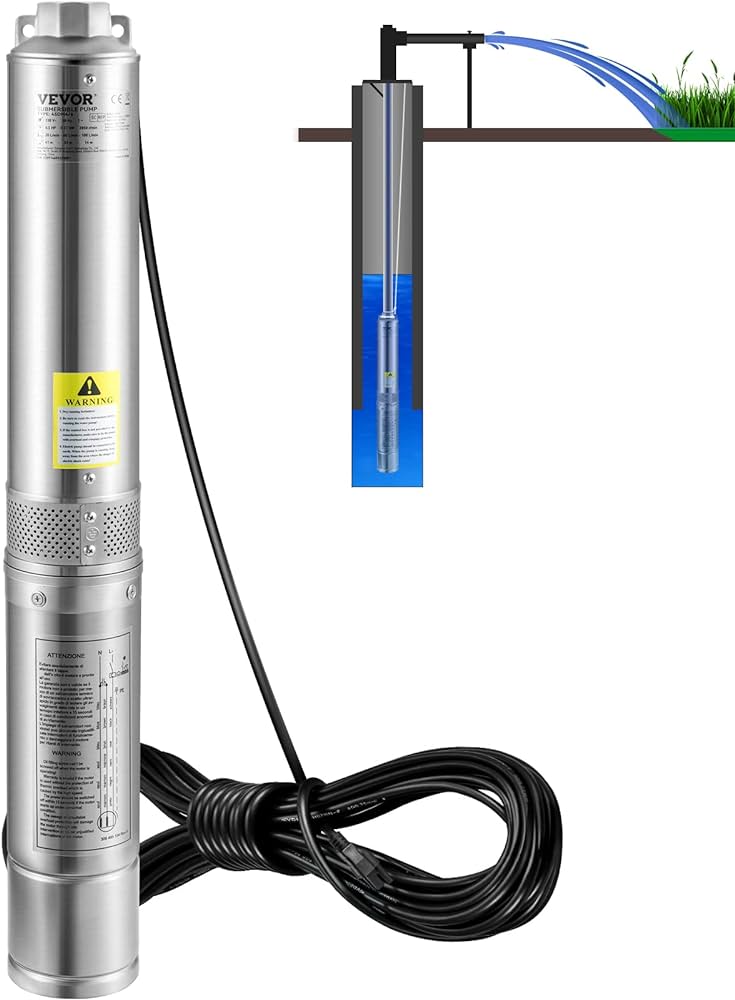

Modern off-grid water systems’ workhorses are submersible well pumps. They are made to fit into your well shaft and dangle below the water table.
Instead of attempting to extract water from the top, they may now push water up from the bottom of your well. By far, the most effective, cost-effective, and adaptable are submersible wells. They have the ability to pump water into a pressurized storage tank from wells of any depth.
They operate quietly since the real pumping operation takes place underground. If you reside in a cold-weather location, it is a huge benefit because the pump itself is resistant to temperature variations.
Most well users will want to utilize a submersible pump.
Shallow vs. Deep Wells
The sort of pump you should choose depends greatly on the depth of your well. You may choose almost any well pump if you’re fortunate enough to have a shallow well.
The United States has deep groundwater levels in several areas. The presence of a well that is deeper than 100 feet is not at all rare. Your only choice at that time is a pump designed for deep well usage.
The distinction between your well water’s static and dynamic depth is one item to keep in mind.
Comparing Static and Dynamic Depth
The water level in your well shaft at rest is known as the static depth. This is the estimate your contractor will provide you for the basic water level if it’s a new well. For your pump to be able to pull water, it must be at least this deep.
Your well’s water level when the pump is running is its dynamic depth. As you take water out of a well, some water will be drawn down. To guarantee a constant flow of water, you must make sure your pump is at or below the dynamic depth.
Buying Guide for Off-Grid Water Pumps
When contrasting various well pumps, there are a few important variables to consider. These are diameter, flow rate, and power consumption.
How much water a well can move in a specific amount of time, depends on its flow rate. This determines how much water you can consume at once and still have appropriate water pressure; it is measured in gallons per minute (GPM).
The amount of capacity you require depends on a few different things. Firstly, how many faucets, taps, showerheads, and other devices use water. Peak demand is the phrase most contractors use. The majority of people don’t use water continuously throughout the day.
You take a morning or evening shower, do your laundry, wash your dishes, and do your regular routines. Calculate and add the necessary pressure for each of your faucets and any other appliances you may have.
You will always have your highest peak demand, thanks to it. To be honest, it’s doubtful that you’ll ever operate every water source simultaneously. By planning how you will use water throughout the day, you may limit the capacity that is needed.
The average single-family home should have a minimum flow rate of 6 GPM, according to several sources. Although it is sufficient for peak demand, this is based on average consumption. There’s a strong possibility your water use will be less than the typical American’s if you’re designing an off-grid home.
Consumption of Energy and Surge Wattage
When comparing electric water pumps, one of the most crucial factors is power consumption. A well pump will require at least a few hundred watts to pump enough water per minute to power your home.
To start up your pump, you’ll need at least a 2,000-watt inverter after surge wattage is taken into account. If you have any other appliances, like an off-grid refrigerator, you’ll need even more capacity than that for the well alone.
When estimating your power requirements, be careful to account for your well pump. You are able to collect all the water you require during the day with a solar system that is the right size.
This one should be quite clear. Any well pump you are thinking about must fit within your well’s shaft.
Verify the precise dimensions of your well shaft and allow a little wiggle space in case of difficulties or incorrect specifications. You are confident that your well pump will slide into place easily in that manner.
The Best Well Pump in 2023
1. Little Giant WE20G05P4-21 ½ HP Submersible Well Pump
|Power Draw||670 Watts|
|Dimensions||22” long, 4” diameter|
|Horse Power||½ HP|
|Required Voltage||115 V AC|
|Flow Rate||20 GPM at 100 ft depth|
Deep well use is possible with the Little Giant WE20G05P4-21 submersible well pump. It can produce an amazing flow rate even at depth and fits in any well with a diameter greater than four inches.
Up to 150 feet below the surface, it may supply pressurized water. You can regularly pull 20 gallons per minute up your well at the height of 100 feet. That’s enough water to power several taps and appliances simultaneously in even a sizable off-grid residence.
2. WAYNE SWS50 1/2 HP Shallow Well Jet Pump
|Power Draw||1,300 watts|
|Dimensions||22” x 12” x 11”|
|Required Voltage||120/240 V|
|Flow Rate||6.25 gallons per hour|

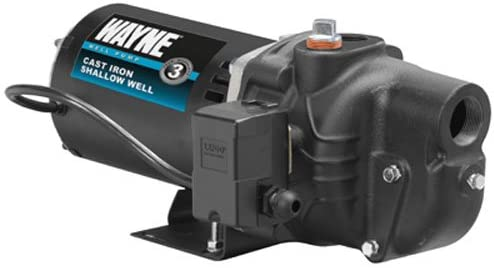

In order to be used at well depths greater than 25′, the Wayne SWS50 is a 1/2 horsepower surface jet pump. This makes it ideal for off-grid residences near natural springs, high water tables, or other sources of surface water.
It can deliver a steady flow rate of 6.25 gallons per minute at pressures of between 30 and 50 psi. That is similar to the water pressure found in a grid connection. That’s enough flow to take hot showers and even operate a washing machine if you’re inclined, as long as you’re mindful of how you use water.
This capability’s considerable power demand is a drawback. The SWS50 draws around 1,300 watts continuously and much more during surges. To run this pump consistently, you’ll need a powerful solar array or a fuel-powered generator.
Additionally, it is noisy, especially when used within the house. However, it is a decent solution for shallow wells and surface water if that doesn’t worry you. It is simple to set up and use, and it has a lot of power.
3. Hallmark Industries MA0343X-4
|Power Draw||670 Wh|
|Dimensions||25.3” long, 4” diameter|
|Horse Power||½ HP|
|Required Voltage||115 V AC|
|Flow Rate||Up to 25 gallons per minute|

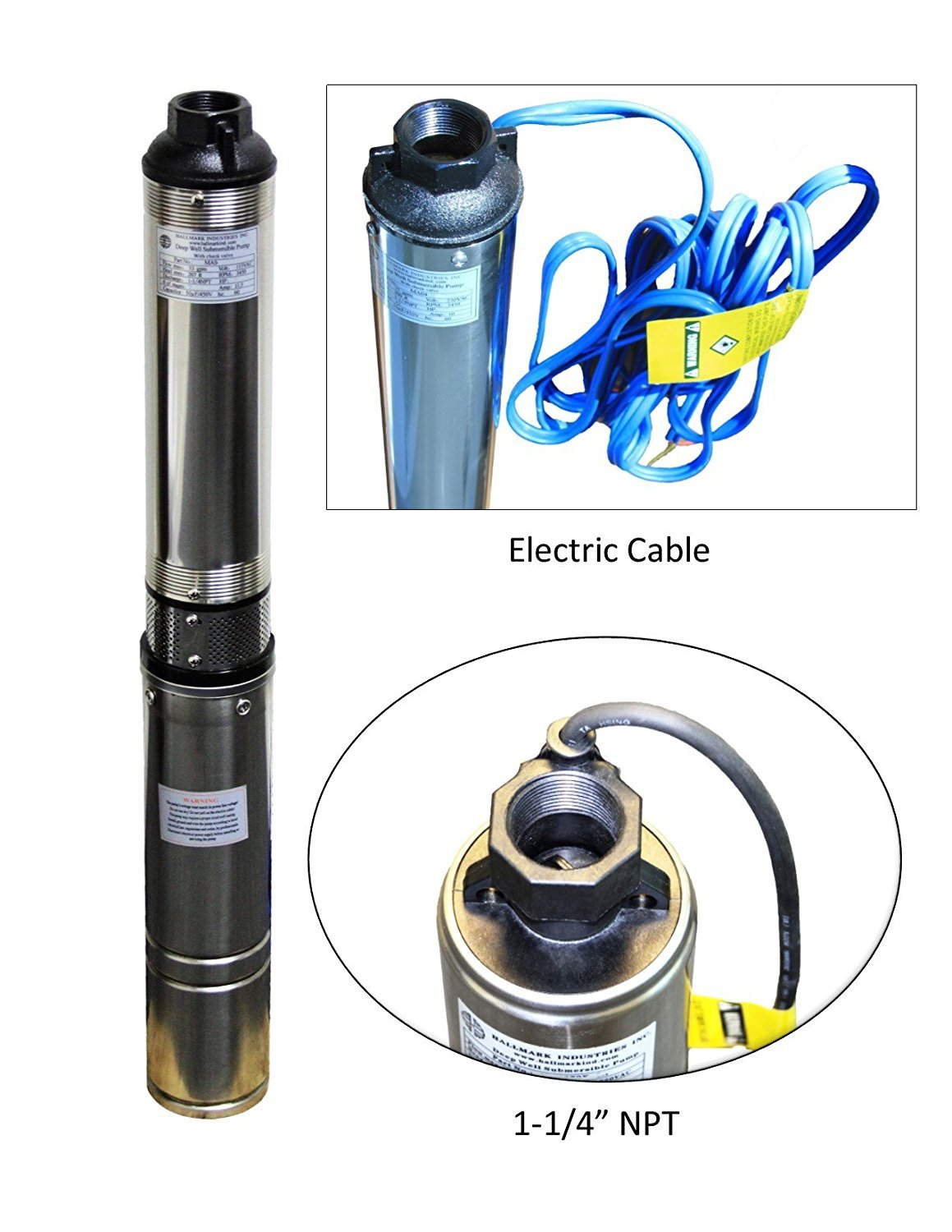

For usage in wells up to 150′ in depth, the Hallmark Industries MA0343X-4 submersible deep well pump was created. It can provide up to 25 gallons of flow per minute into a non-pressurized storage tank.
It has a hermetically sealed motor and is constructed of cast iron and heavy-duty stainless steel. This provides an incredibly extended operating life and renders it resistant to corrosion.
Between 50 and 120 feet of depth is where it performs best. It has a minimum flow rate of 9 gallons per minute in that range, which is sufficient to supply water for a full-time off-grid lifestyle.
Your well may possibly be able to provide up to 40 psi into a pressurized tank if its depth is greater than 40′. This provides your home with a much more conventional water system.
Overall, the Hallmark Industries MA0343X-4 water pump is a budget-friendly but valuable product. You won’t find a better water pump for the money because it can only be used in restricted deep well situations and can offer a whole household a great source of off-grid water.
4. Simmons No. 2 Pitcher Pump
|Dimensions||8” x 8” x 16”|
|Flow Rate||Varies depending on strength, well depth, and pumping speed|
Since the Pioneers began their journey over the Great Plains, technology has been used in various forms, one of which is the Simmons No. 2 Pitcher Pump. It’s a hand-operated water pump that relies only on the power of your arm.
It is very indestructible and is composed of closed-grain cast iron. A suction effect is produced when the long pump arm is turned on, drawing water up from the well shaft and spilling it out into a bucket, trough, or storage tank.
Since it is almost error-proof, this method has been used to draw water for millennia. The No. 2 requires no electricity, no upkeep, and may operate in almost any environment. As long as you’re ready to make the sacrifices, it’s a fantastic method to advance your off-grid living.
The Simmons No. 2 can only draw water up from a depth of around 25′ at first. Even so, if you want to raise it from a depth of more than 15′, you’ll need a strong arm. When you start to draw water, you must prime the pump with a few cups of water. This aids in producing the first suction that begins to extract water.
5. Shurflo 2088-554-144 Fresh Water Pump
|Power Draw||50 to 55 watts|
|Dimensions||8.5” x 4.5” x 5”|
|Required Voltage||12 V|
|Flow Rate||3.5 gallons per minute|

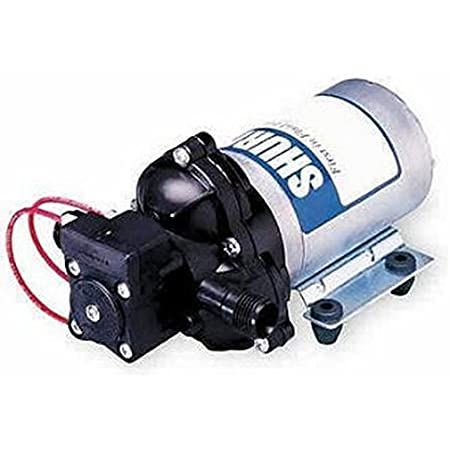

Not all off-grid water pumps must use wells to obtain water. RVs, yachts, and compact dwellings may get adequate water pressure with this Shurflo water pump.
For showers and other functions, it draws water from a tank storage area and pressurizes it. It doesn’t at all need a well or other such source to get its water.
It can deliver a flow rate of up to 3.5 gallons per minute. As long as they aren’t all running simultaneously, this is plenty to operate showers, a dishwasher, or other comparable appliances.
The Shurflo runs on 12 V DC power, which is much better. This eradicates the need for an inverter and allows you to connect it straight to a solar battery system. In comparison to the other pumps on my list, it uses a lot less electricity.
The Shurflo is perfect for folks who travel in an RV or compact house. It provides you with standard water pressure without placing a heavy burden on your inverter.
6. Franklin Electric Pump
|Maximum Water Flow Rate||2-7 GPM|
|Maximum Water Depth||Up to 400 Feet|
|Operating Voltage||120 volts AC|
|Performance||2-pole synchronous electric motor, solid-state frequency drive|
|Material||Aluminum, Polypropylene, Stainless Steel, Carbon Steel|

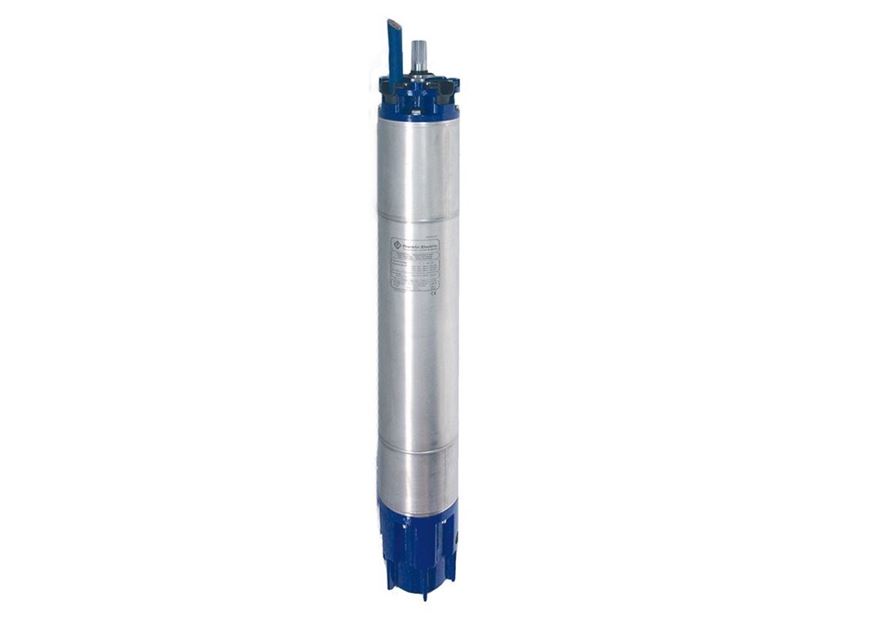

Franklin Electric Well Pump is a type of well pump that uses electricity to pump water from a well. It is designed to be reliable and efficient, making it a popular choice among homeowners and well drillers. Some other features of this well pump are described below:
- A compact pump that can be easily installed by homeowners or professionals.
- A global leader in the production and marketing of systems and components for the movement of water and fuel.
- A manufacturer of 4″, 6″ and 8″, single and three phase submersible, water cooled, well pump motors, controls and variable speed drives.
- A provider of high-quality pumping systems for submersible well and surface applications.
7. Pentek P560 Pump
|Voltage||120 V AC|
|Maximum Water Flow Rate||7 gallons per minute|
Pentek P560 Well Pump is a type of well pump that uses a 4″ submersible electric motor to pump water from a well. It is part of the Pentek XE Series, which are high-thrust motors that feature laser-welded stainless steel construction, solid-state frequency drive, and professional-grade Class F insulation. Pentek is a global leader in the production and marketing of systems and components for the movement of water and fuel. Here are some more descriptions about this well pump:
- A compact and reliable pump that can be used for residential, irrigation, or solar applications.
A product of Pentek, a brand of Pentair, which is a leading provider of water solutions for homes, businesses, and industries.
A part of the Pentek XE Series, which are high-quality submersible motors that are designed for energy efficiency and ease of installation.
8. Berkeley 2B-10S well pump
|Maximum Water Flow Rate||25 Feet|
|Maximum Water Depth||1/2|
|Material||Close-Grained Cast Iron, Lexan, Noryl, Reinforced|
|Warranty||1 Year Limited Warranty|
Berkeley 2B-10S well pump is a type of well pump that uses a shallow well jet pump to pump water from a well. It is part of the Berkeley HN Series, which are quality pumps that provide excellent performance with good pressure for wells up to 25 feet deep. Berkeley is a global leader in the production and marketing of systems and components for the movement of water and fuel. Here are some more descriptions about this well pump:
- A reliable and quality pump that can be used for residential or irrigation applications.
- A product of Berkeley, a brand of Pentair, which is a leading provider of water solutions for homes, businesses, and industries.
- A part of the Berkeley HN Series, which are high-performance shallow well jet pumps that are designed for energy efficiency and ease of installation.
9. Grundfos CR151-152PE-60 well pump
|Voltage||460 V AC|
|Maximum Water Flow Rate||60 GPM|
|Maximum Water Depth||580 Feet|
|Warranty||2 Years Limited Warranty|
Grundfos CR151-152PE-60 well pump is a type of well pump that uses a multistage centrifugal pump to pump water from a well. It is part of the Grundfos CR Series, which are vertical, in-line pumps that are suitable for a wide range of applications, such as water supply, irrigation, pressure boosting, and industrial processes. Grundfos is a global leader in the production and marketing of systems and components for the movement of water and fuel. Here are some more descriptions about this well pump:
- A reliable and quality pump that can be used for various applications that require high pressure and flow.
- A product of Grundfos, a brand of Pentair, which is a leading provider of water solutions for homes, businesses, and industries.
- A part of the Grundfos CR Series, which are innovative and versatile pumps that are designed for energy efficiency and ease of installation.
10. Red Lion 1998S Well Pump
|Voltage||230 V AC|
|Maximum Water Flow Rate||22 GPM|
|Maximum Water Depth||250 Feet|
|Warranty||2 Years Limited Warranty|
Red Lion 1998S Well Pump is a type of well pump that uses a 4″ submersible electric motor to pump water from a well. It is part of the Red Lion RL Series, which are high-quality pumps that provide excellent performance and durability for deep well applications. Red Lion is a global leader in the production and marketing of systems and components for the movement of water and fuel. Here are some more descriptions about this well pump:
- A reliable and quality pump that can be used for deep well applications that require high pressure and flow.
- A product of Red Lion, a brand of Pentair, which is a leading provider of water solutions for homes, businesses, and industries.
- A part of the Red Lion RL Series, which are innovative and versatile pumps that are designed for energy efficiency and ease of installation.
