Difference between single phase and three phase generators

In this article, you will read about the difference between Single Phase and Three Phase generators and this will help you not only learn about different aspects of these two generators, but also gain a deeper knowledge about their differences. This comparison enables you to choose the right generator, whether it be buying a new one or choosing a second-hand system that’s tailored to your needs. We have spent a lot of time researching and gathering data from reliable sources and also experts in the field to provide the best and the most accurate information for you. So, let’s dive deeper and learn the difference between single phase and three phase generators with Linquip.

1.What is Phase in Electricity?

In electricity phase is generally the voltage or the current in a wire or a neutral cable. Phase actually means the distribution of load. For example, in a single wire, the additional load passes through this single wire; but if two wires are used, the loads are then separated between them. So, 1-phase or single-phase systems have two wires while 3-phase systems have 4 wires.

Find out More about Industrial Generator Device & Equipment in Linquip
Find out More about Portable Generator Device & Equipment in Linquip

2.General Overview of Single Phase and Three Phase AC Systems

In the previous part, we explained about the meaning of phase in the electricity and what single-phase and three-phase means. Now, let’s learn about the single phase and three phase AC systems and get a better understanding about their benefits and applications and after you gained more knowledge about them separately, we talk about the difference between single phase and three phase generators.

The flow of current in the AC power which is a kind of electricity, frequently changes direction. The power supply’s system has been categorized into two different types: Single Phase and Three Phase power supply. Both of these generators use AC power to refer units. But the reliability of delivery is the main difference between them.

Difference between single phase and three phase generators

3.Single Phase Supply

In this part, we will explain single phase supply and its benefits and applications to help us further about the difference between single phase and three phase generators.

The single-phase supply in the field of electricity, means the delivery of AC power using a system with simultaneous supply voltage change. When the loads (in the case of a single-phase supply, the home appliances) are heat and lighting with their electric motors, a single-phase supply is used. And sometimes when an AC motor supply doesn’t have the energy to generate a rotating magnetic field, their motors then require extra circuits to work, but these motors are rare over rating of 10 kW. The voltage of a single-phase system reaches the peak-value twice and there’s no stability for the direct power.

A connection between two phases or connection between one phase and neutral, enables a load with a single phase to be power driven from a three phase sharing transformer. They provide dissimilar voltages from the power supply.

Single phase supply is usually used for small home appliances like fans, conditioners, and heaters since they provide up to 230V.

 3.1 Single Phase Supply Benefits &Applications

There are many benefits when you choose a single phase supply. Some of them might be the same as a three phase supply, but some of them are different. Later on, when we talk about the difference between single phase and three phase generators, we’ll explain these differences as well.

Among the benefits of using a single phase supply is that its design cost is less and the design is also less complex. If you want to have an AC power supply for up to 1000 watts, single phase supply is the one for you. Plus, they are suitable for a wide range of application uses.

Register as an Expert on Linquip to Get All the Benefits

Single phase supply’s applications are wide. For example, it’s suitable for running the motors up to 5hp and they can be used for supplying plenty of power for non-industrial businesses and home appliances.

4.Three Phase Supply

Now, what about three phase supply? You need to know them too if you want to compare it with single phase and learn the difference between single phase and three phase generators. Well, three phase power supply includes four wires. Usually one is neutral and the rest are conductors. This type of power supply is utilized as a single phase AC power supply. One phase AC power supply as well as neutral for the small load can be chosen from the three phase AC power supply system. The three phase supply, provides constant supply and its power can be used with two configurations: star connection or delta connection. And, its connection due to the neutral cable to the error current is suitable for long-distance communication.

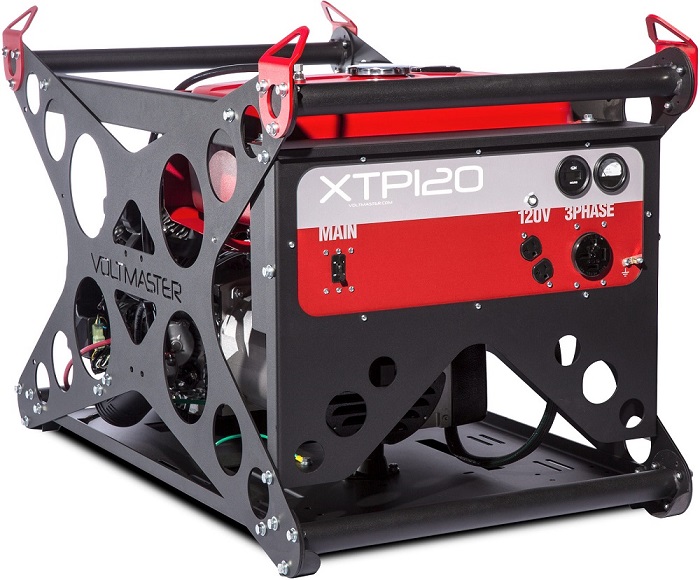

Difference between single phase and three phase generators

4.1 Three Phase Supply Benefits & Applications

There are many benefits in choosing a three phase supply such as: labor treatment costs, copper utilization reduction, facility to run high power loads, reducing the security risks for employees, and not to mention that the efficiency of the conductor is greater!

Three phase supply is used in data centers, power grids, mobile towers, aircraft, shipboard, and other electronic loads that are larger than 1000 watts. You can use three phase supplies in high-density and power-hungry data centers. They are suitable for large businesses, and industrial as well as manufacturing uses.

5.Difference between 3-phase and single-phase phase generators and which one should we use?

Now that we have all the necessary background knowledge, let’s discover the difference between single phase and three phase generators.  There are some key differences between them that we will learn here:

One thing you’ve learned for sure thus far is that three phase generators are usually used in business or industrial settings to run the high loads but single-phase generators are mainly for residential use since home appliances need less power.

Another difference between single phase and three phase generators is right in their definition and design! As we already mentioned, the power supplied in a single phase is through a single conductor whereas, in a three phase power supply, the power flows through three conductors. and the single phase needs a single wire for connecting the circuit, but this number is 3 for three phase supply.

The third difference we want to mention here is that the single phase’s voltage is 230V while the voltage of a three phase is 415V.

Another difference between single phase and three phase generators is that three phase power supply contains three distinct wave cycles, while in a single-phase, there’s only one distinct wave cycle.

One really small yet interesting difference between these two is that in a single phase the phase name is split phase. But a three phase doesn’t have a special name for its phase.

There’s also a difference between the costs of these two. While a single phase supply is inexpensive, the three phase supply is expensive. But keep in mind that each of them has their own use so you can’t just leave the expensive option if your system needs it.

Remember that the plus point of a three phase is that its efficiency is high, while you see the exact opposite in a single phase with low efficiency.

Another important difference between them is that the loss in a three phase is minimum, but in a single phase, it’s maximum. And also single has power failures too!

It’s good to know that the capacity of power transfer in a three phase is maximum, while in a single phase, this capacity is minimum.

6.Conclusion

We tried to tell you all there’s to know about the difference between single phase and three phase generators and their benefits and applications in this article. We talked about them separately and then compared them both together for you to learn these differences and know when to use one.

Now that you know the difference between Single Phase and Three Phase Generators, share your experience with us in the comment section and let us know if you’ve ever experienced using any of these generators or have something to add to this conversation. And if you have any questions, feel free to sign up on our website and one of our experts in Linquip will help you out.
