What is a Solid Rivet?

Being one of the oldest and most dependable forms of fasteners, solid rivets may be traced back to Bronze Age artifacts. Simple shaft and head that are bent using a hammer or rivet gun make up solid rivets. This sort of rivet can also be deformed using a compression or crimping tool. Since the depth of the tool’s frame restricts its use, it is often employed on rivets that are near to the edge of the material being secured. Installing strong rivets with a rivet compression tool is typically the most secure method and doesn’t require two persons.

Applications where dependability and safety are important employ solid rivets. The structural components of airplanes are a common location for solid rivets. The structure of a contemporary airplane is put together using hundreds of thousands of strong rivets. Such rivets are available with 100° countersunk or rounded (universal) heads. Aluminum alloys (2017, 2024, 2117, 7050, 5056, 55000, V-65), titanium, and nickel-based alloys are typical materials for aviation rivets (e.g., Monel). Some rivets made of aluminum alloy are too hard to buck and must first be softened by solution treatment (precipitation hardening). In order to reduce the age-hardening process, “ice box” aluminum alloy rivets must also be annealed and then stored at temperatures below freezing (thus the term “ice box”). Bridges, cranes, and the frames of buildings are examples of static constructions that use steel rivets.

Both sides of a structure must be accessible for the installation of these fasteners. An electromagnetic, hydraulic, or pneumatically powered squeezing tool, or even a hand hammer, is used to drive solid rivets. Blind rivets are used for applications where only one side is accessible.

Some artists also utilize solid rivets in the creation of contemporary replicas of medieval armor, jewelry, and metal couture.

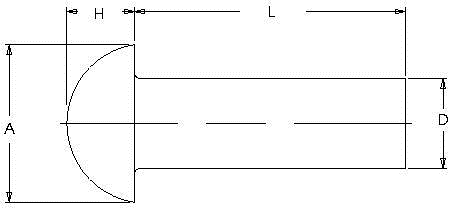

What Are Solid Rivets And How Do They Work? — Construction of a solid rivet (Reference: **wikipedia.org**)

Working Principle of a Solid Rivet

A rivet is inserted into the snap after it has been clamped into a vice’s jaws. Then the rivet is covered by the lined-up holes in the material being connected.

To produce the head on the tail (formerly the non-headed end) of a rivet, a rivet snap is a necessary tool. The snap has a flat surface for hitting with a hammer at one end and a hole and interior dome (concave) form at the other.

By using a hammer to bend the rivet’s tail (now the headless end), the original head and the new head may now grip the material on either side. The rivet is also somewhat compressed by the deformation of the tail, which tightens it against the materials. The new rivet head is shaped into a dome with a second rivet snap. A hydraulic or electric riveter will automatically distort the pin end by vigorously pressing the rivet’s head on the snap.

How To Install Solid Rivet?

In what follows, various steps for installing a solid rivet are described.

Metal Sheet Identification Marks

Mark the region of the metal sheet where the riveting will take place first. By marking, the possibility of incorrect or erroneous riveting is eliminated. As a result, marking is crucial before riveting every substantial rivet.

Placing in Order Metal Plates

As you are probably aware, riveting is the method used to unite two metal sheets. Thus, in order to create the ideal riveting environment, both metal sheets must be put in the designated region prior to placing solid rivets.

Drilling

Making a space for a sturdy rivet to go into the drilled hole is done by drilling. For precise rivet placement, drilling is done to both metal sheets inside the indicated region.

Here, keep in mind that the hole cannot be larger than the radius of a rivet. This can make the rivet less tightly clamped and accelerate the failure of the rivet.

Inserting Rivet

A strong rivet is put into the drilled hole in the metal sheets after alignment and hole drilling. The positioning of the rivet in the hole has to be verified here.

Hammering

The solid rivet is next expanded by applying pressure to its tail, which aids in locking both metal sheets from one side, in the following step. Rivets are simple to hammer into aluminum.

Rearranging and Reformatting

The following process is formatting and adding shape to the tail end that is worn out from hammering, giving it shape to give metal sheets a better finish.

Repeat

Repeat the procedure with the following solid rivet at the designated region or location.

Various Types of Solid Rivets

Solid rivets come in four primary categories, including:

Flat head solid rivet

Round head solid rivet

Pan head solid rivet

Countersunk solid rivet

Flat Head Solid Rivet

These rivets, as the name implies, are completely flat from the top of the side or head side, giving the user a sizable head surface area that further aids in fastening the tough or thick materials.

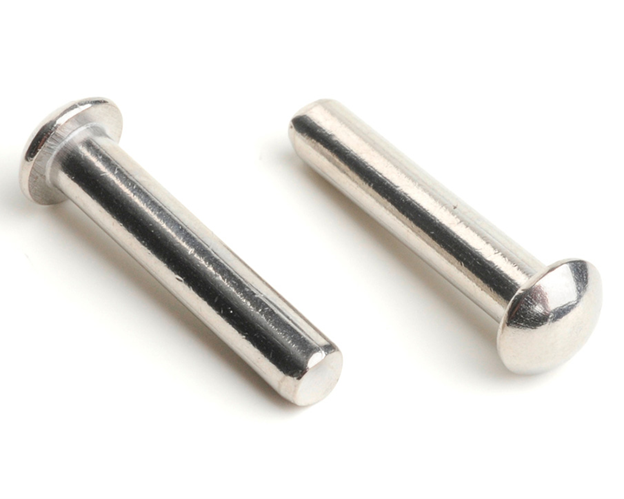

Round Head Solid Rivet

As the name implies, this rivet has a spherical, mushroom-like head that gives it greater holding or bearing surface for attaching any metal objects.

Pan Head Solid Rivet

As the name implies, this kind of rivet has a flat or pan head that adds more bearing surface so that the metal element being secured may be properly gripped. High fatigue resistance is another characteristic of this fastener.

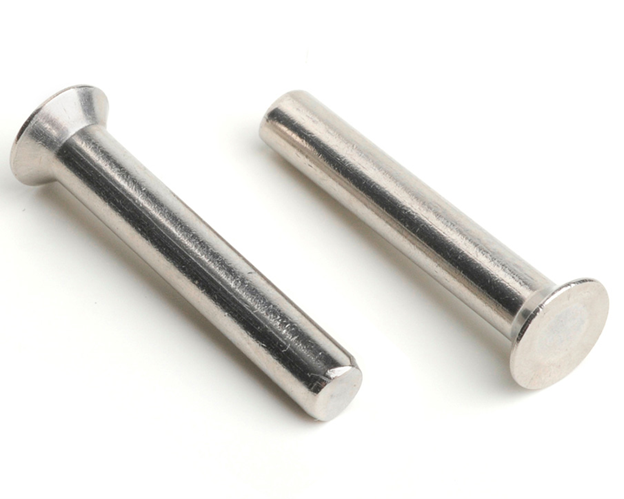

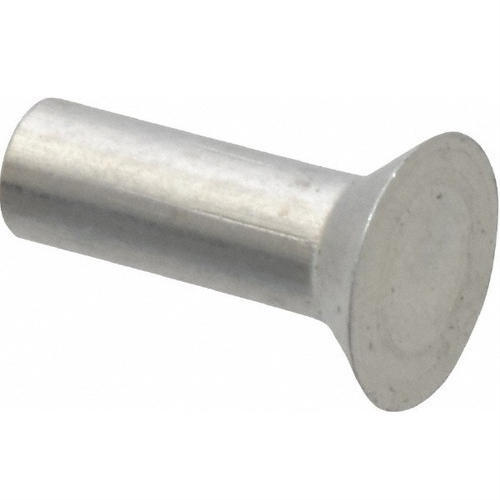

Countersunk Solid Rivet

After riveting, countersunk head rivets are made to produce a smooth surface finish. Even after riveting, the smooth surface finish is produced by the cone-shaped angle below the head, which provides enough space to penetrate through the metal substrate.
