Introduction to Heat Exchanger Sizing
Sizing a heat exchanger accurately is vital for achieving optimal system performance and energy efficiency. However, the sizing process can seem daunting due to its inherent complexity and the numerous factors that influence it. Thankfully, Linquip is here to simplify this task for you. Our goal is to empower you with the knowledge needed to understand and efficiently size heat exchangers.
Factors Influencing Heat Exchanger Size
Several factors come into play when sizing a heat exchanger. These include:
- Heat Transfer Rate: This is the amount of heat you need to transfer from one fluid to another.
- Temperature Differential: The temperature difference between the hot and cold fluids impacts the size of the heat exchanger.
- Flow Rates: The flow rates of both the hot and cold fluids will influence the size.
- Fluid Properties: The properties of the fluids such as specific heat, density, and viscosity can affect the sizing.
Understanding these factors is the first step in accurately sizing a heat exchanger for your specific requirements.
Step-by-Step Process for Sizing a Heat Exchanger
Here’s a simplified step-by-step process to size a heat exchanger:
- Determine the Heat Duty: Calculate the amount of heat that needs to be transferred. This is usually given in BTU/hr or Watts.
- Identify Temperature Specifications: Identify the inlet and outlet temperatures of both the hot and cold fluids.
- Identify Flow Rates: Determine the flow rates of both the hot and cold fluids.
- Calculate Log Mean Temperature Difference (LMTD): Use the inlet and outlet temperatures of both fluids to calculate the LMTD.
- Use Heat Exchanger Equation: Use the heat exchanger equation (Q = U * A * LMTD) to solve for the heat transfer area (A), using the heat transfer coefficient (U), which is dependent on the type of heat exchanger, the materials used, and the fluids involved.
Remember that this is a simplified guide. The actual process may require more complex calculations and considerations. If you’re unsure, it’s best to consult with a professional or use a heat exchanger sizing tool.

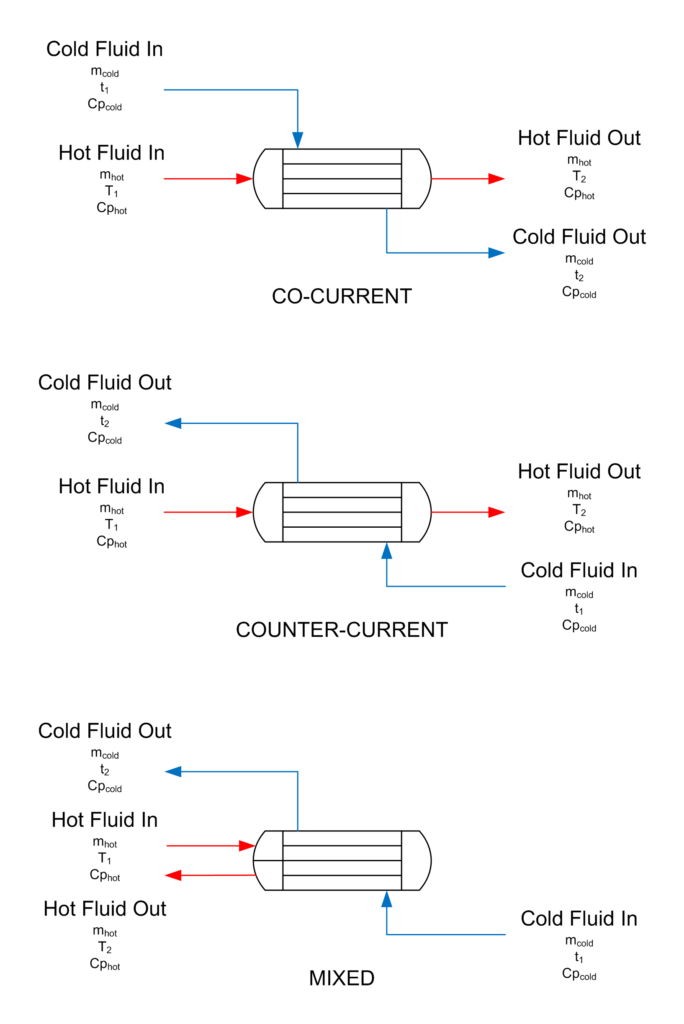

Heat Exchanger Sizing Calculator (Reference: blackmonkengineering.com)
Conclusion and Final Thoughts
Sizing a heat exchanger is a critical step in ensuring optimal system performance and energy efficiency. While it might seem complicated, understanding the basic factors influencing the size and the steps involved can make the process more manageable.
At Linquip, we are dedicated to simplifying complex processes for you. Whether you’re looking to size a heat exchanger or gain insights into other equipment, Linquip is here to guide you. Armed with this knowledge, you can make informed decisions about your equipment and ensure they align with your specific requirements.
Navigate the world of equipment sizing with confidence, knowing that Linquip is by your side. Remember, knowledge is power, and at Linquip, we are committed to empowering you.
|Determine the Heat Duty||Calculate the amount of heat that needs to be transferred. This is usually given in BTU/hr or Watts.|
|Identify Temperature Specifications||Identify the inlet and outlet temperatures of both the hot and cold fluids.|
|Identify Flow Rates||Determine the flow rates of both the hot and cold fluids.|
|Calculate Log Mean Temperature Difference (LMTD)||Use the inlet and outlet temperatures of both fluids to calculate the LMTD.|
|Use Heat Exchanger Equation||Use the heat exchanger equation (Q = U * A * LMTD) to solve for the heat transfer area (A), using the heat transfer coefficient (U), which is dependent on the type of heat exchanger, the materials used, and the fluids involved.|
And here’s another table outlining the factors influencing the size of a heat exchanger:
|Heat Transfer Rate||The amount of heat you need to transfer from one fluid to another.|
|Temperature Differential||The temperature difference between the hot and cold fluids.|
|Flow Rates||The flow rates of both the hot and cold fluids.|
|Fluid Properties||The properties of the fluids such as specific heat, density, and viscosity.|
Please note, these tables provide a simplified overview, and the actual process can be more complex and requires precise calculations. Always consult a professional or use a proper sizing tool for accurate results.
Download PDF for Demystifying Heat Exchanger Sizing
You can download the PDF format of this post from the link provided here.
