How to Wire Up Piezoelectric Sensor? A Comprehensive Guide

Table of Contents

Introduction

At Linquip, we believe in the power of knowledge, especially when it comes to understanding and utilizing advanced technologies. In this guide, we will explore the steps to wire up a piezoelectric sensor, an increasingly popular device used in a variety of applications for its sensitivity to pressure changes.

Understanding Piezoelectric Sensors

Piezoelectric sensors are devices that use the piezoelectric effect to measure changes in pressure, acceleration, temperature, strain, or force by converting them to an electrical charge. These sensors are particularly popular due to their sensitivity, making them suitable for use in a variety of fields, from consumer electronics to industrial applications.

Tools Needed for Wiring a Piezoelectric Sensor

Before you begin the wiring process, it’s crucial to gather the necessary tools:

Piezoelectric sensor
Electrical wire
Soldering iron and solder
Wire strippers
Multimeter

How to Wire a Piezoelectric Sensor: A Step-by-step Guide

Step 1: Prepare the Piezoelectric Sensor

First, ensure that the sensor is clean and ready for wiring. Most piezoelectric sensors come with two wires or contacts: the signal wire (often red) and the ground wire (often black).

Step 2: Strip the Wires

Using your wire strippers, strip about 1/2 inch of insulation from the ends of the wires.

Step 3: Solder the Wires

Next, solder the wires to the corresponding contacts on your sensor, being careful not to overheat the sensor.

Step 4: Connect the Sensor to Your Circuit

Once the wires are securely soldered, you can connect the sensor to your circuit. Ensure that the signal wire is connected to the input of your circuit and the ground wire is connected to a common ground.

Step 5: Test the Sensor

After your sensor is wired up, it’s essential to test it to ensure it’s working properly. Use a multimeter to measure the voltage output from the sensor when pressure is applied.

Step-by-Step Guide to Wiring a Piezoelectric Sensor

Step 1: Understand the Wiring

Piezoelectric sensors usually come with two wires: one for signal (often red) and one for ground (often black or white). It’s crucial to identify these correctly before proceeding.

Step 2: Strip the Wires

Using your wire strippers, carefully strip around 1/2 inch of the insulation from the ends of the wires, exposing the metallic conductor underneath.

Step 3: Solder the Wires to the Sensor

Secure the piezoelectric sensor and proceed to solder the wires to the corresponding terminals on the sensor. Remember, the signal wire goes to the signal terminal, and the ground wire to the ground terminal.

Step 4: Connect the Sensor to the Circuit

With the wires soldered to the sensor, you can now incorporate it into your circuit. Make sure the signal wire connects to the input of your circuit and the ground wire to a common ground.

Step 5: Test Your Setup

Before finalizing your setup, it’s important to test it to ensure that the sensor is working correctly. Apply pressure to the sensor and use a multimeter to check if there’s a voltage change on the signal wire.

Safety Precautions

While wiring a piezoelectric sensor is not typically dangerous, there are still precautions you should take:

Always turn off and unplug your equipment before beginning any work to prevent electric shock.
Use a soldering iron stand to prevent any accidental burns or fires.
Always work in a well-ventilated area, as soldering can produce harmful fumes if inhaled.

By following these steps and precautions, you should be able to successfully wire up a piezoelectric sensor. As with any electronics project, patience and precision are key. Good luck!

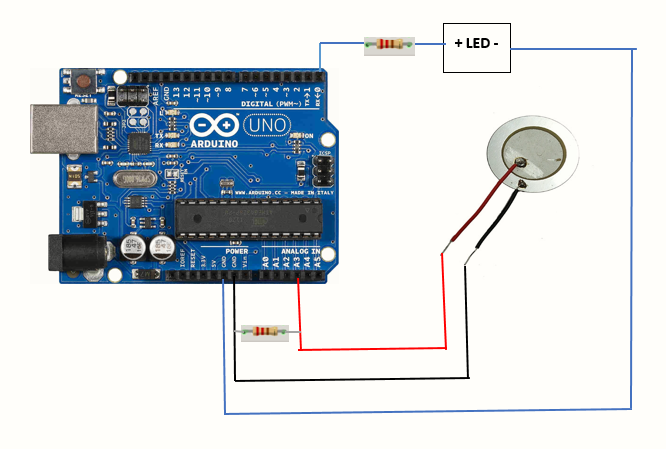

Piezoelectric Sensor (Reference: robu.in)

Common Challenges and Troubleshooting Tips

Like any electronic project, you might encounter a few hiccups along the way. Here are some common challenges and tips on how to troubleshoot them:

The sensor is not responding: Check your connections and ensure the wires are properly soldered to the sensor and your circuit. Also, ensure the sensor itself is not damaged.
The sensor readings are inconsistent: This could be due to a loose connection or a problem with the sensor itself. Check all connections and consider replacing the sensor to see if this solves the issue.
The sensor is not sensitive enough: This might be due to the type of piezoelectric sensor you’re using. Some sensors are more sensitive than others, so you might need to choose a different model for your specific application.

Conclusion and Final Thoughts

Piezoelectric sensors are versatile devices with a wide range of applications. Understanding how to properly wire them up allows you to integrate them into your projects successfully. At Linquip, our goal is to provide you with comprehensive, easy-to-understand resources to help you make the most of your equipment.

Whether you’re new to the world of piezoelectric sensors or looking to expand your existing knowledge, Linquip is here to guide you. With Linquip’s resources at your disposal, you can navigate the exciting world of technology with confidence and ease. Trust Linquip to provide the expert knowledge and insights you need to excel.

Steps	Description
Step 1: Understand the Wiring	Piezoelectric sensors typically come with two wires: signal and ground. Make sure you identify these correctly before proceeding.
Step 2: Strip the Wires	Using wire strippers, carefully strip approximately 1/2 inch of the insulation from the ends of the wires, exposing the metallic conductor underneath.
Step 3: Solder the Wires to the Sensor	Secure the sensor and solder the wires to the appropriate terminals on the sensor. The signal wire connects to the signal terminal and the ground wire to the ground terminal.
Step 4: Connect the Sensor to the Circuit	After soldering, incorporate the sensor into your circuit. The signal wire should connect to the input of your circuit, while the ground wire should connect to a common ground.
Step 5: Test Your Setup	Before finalizing your setup, it’s important to test the sensor to ensure it’s working properly. Apply pressure to the sensor and observe any voltage change on the signal wire using a multimeter.

Common Challenges	Troubleshooting Tips
The sensor is not responding	Check all connections and ensure that the wires are correctly soldered to the sensor and your circuit.
Sensor readings are inconsistent	This could be due to a loose connection or an issue with the sensor itself. Check all connections and consider replacing the sensor if necessary.
The sensor is not sensitive enough	This might be due to the specific model of sensor you’re using. Some sensors are more sensitive than others, so you may need to select a different sensor that is more appropriate for your application.
