Pipes play a crucial role in numerous industries, from construction to manufacturing. To fit precise requirements, pipes often need bending. The tool responsible for this task is a pipe bender. With Linquip‘s extensive catalog, uncovering the right bender for your needs becomes a breeze.
Here are the most common types of Pipe Benders
- Manual Pipe Benders
- Hydraulic Pipe Benders
- Mechanical Pipe Benders
- CNC Pipe Benders
- Electromechanical Pipe Benders
- Roll Benders (or Pyramid Benders)
- Mandrel Pipe Benders
- Segment Benders (or Hossfeld Benders)
- Compact Bench-Mounted Pipe Benders
- Crossbow Benders
- Gantry-style Benders
- Heat Induction Benders
Types of Pipe Benders Table with Characteristics and Usage
|Type of Pipe Bender||Characteristics||Usage|
|Manual Pipe Benders||– Simple lever mechanism
– No external power is required
|– Basic bending tasks
– DIY projects and small-scale plumbing
|Hydraulic Pipe Benders||– Uses hydraulic pressure
– Can handle tougher metals
– Heavy-duty tasks in larger setups
|Mechanical Pipe Benders||– Operated via mechanical force
– Typically larger and sturdier
|– Industrial setups
– When precision is less critical
|CNC Pipe Benders||– Computer-controlled precision
– Automated bending process
|– Automotive and aerospace industries
– Where high precision is required
|Electromechanical Pipe Benders||– Combines electric & mechanical systems
– Offers control & versatility
|– Medium to large
|Roll Benders (Pyramid Benders)||– Uses three rollers for bending
– Achieves large curves
|– Metalwork artistry
– Decorative structures
|Mandrel Pipe Benders||– Uses a mandrel for support
– Prevents pipe deformation during bending
|– Bending thin-walled tubing
– Automotive and aerospace industries
|Segment Benders (Hossfeld)||– Uses different die segments
– Interchangeable dies for varying bending radii
|– Diverse tasks from art to manufacturing|
|Compact Bench-Mounted Benders||– Designed for bench mounting
– Smaller and lightweight
|– Small workshops and DIY enthusiasts|
|Crossbow Benders||– Unique crossbow shape
– Allows easy bending without frequent tool repositioning
|– Primarily for bending soft materials in plumbing|
|Gantry-style Benders||– Large industrial-grade
– Movable frame or gantry that travels along the pipe
|– Large-scale projects, e.g., oil pipelines|
|Heat Induction Benders||– Uses heat to make the pipe malleable
– Involves passing an electrical current
|– Large-diameter pipes in heavy industries|
This table provides a concise overview of the types of pipe benders, making it easy to understand their primary features and applications.
Manual Pipe Benders
- Hand-operated without the need for external power.
- Relatively portable and lightweight.
- Ideal for light tasks, DIY projects, and on-site operations.
Hydraulic Pipe Benders
- Uses hydraulic pressure to bend pipes.
- Offers more power and is suitable for thicker pipes.
- Best for heavy-duty tasks in construction and industrial settings.

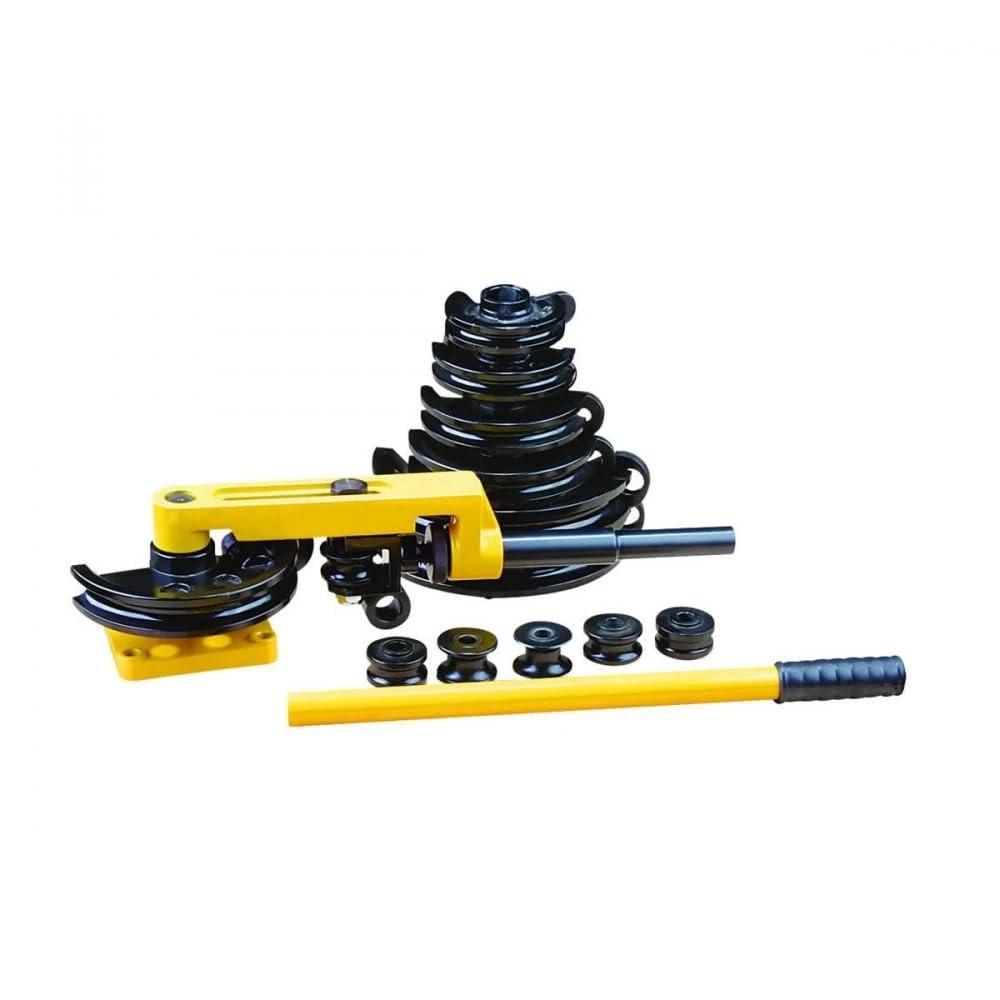

Mechanical Pipe Benders
- Operated using mechanical force via levers or gears.
- Offers precise bending angles.
- Suited for workshops and fabrication units.
CNC Pipe Benders
- Computer Numerically Controlled (CNC) operation.
- High precision and consistency in bending.
- Perfect for industries requiring high-volume and consistent bends, such as automobile manufacturing.
Electromechanical Pipe Benders
- Combines both electric and mechanical systems.
- Provides control and versatility in operations.
- Used in medium to large-scale industries where precision and speed are paramount.
Roll Benders (or Pyramid Benders)
- Uses three rollers to exert pressure and shape the pipe.
- Can achieve large, sweeping curves.
- Ideal for creating arcs or large bends, commonly seen in metalwork artistry and decorative structures.
Mandrel Pipe Benders
- Uses a mandrel—a solid rod or ball—inserted into the pipe during the bending process.
- Ensures the pipe doesn’t collapse or deform while bending.
- Perfect for bending thin-walled tubing without wrinkles, widely used in the automotive and aerospace industries.
Segment Benders (or Hossfeld Benders)
- Uses different die segments to achieve varying bending radii.
- Highly versatile due to the interchangeable dies.
- Suited for diverse tasks, from art projects to specific manufacturing jobs.
Compact Bench-Mounted Pipe Benders
- Specifically designed for bench mounting.
- Offers stability and leverage during operations.
- Usually smaller in size and lightweight.
- Ideal for small workshops, hobbyists, or DIY enthusiasts who require precision in limited spaces.

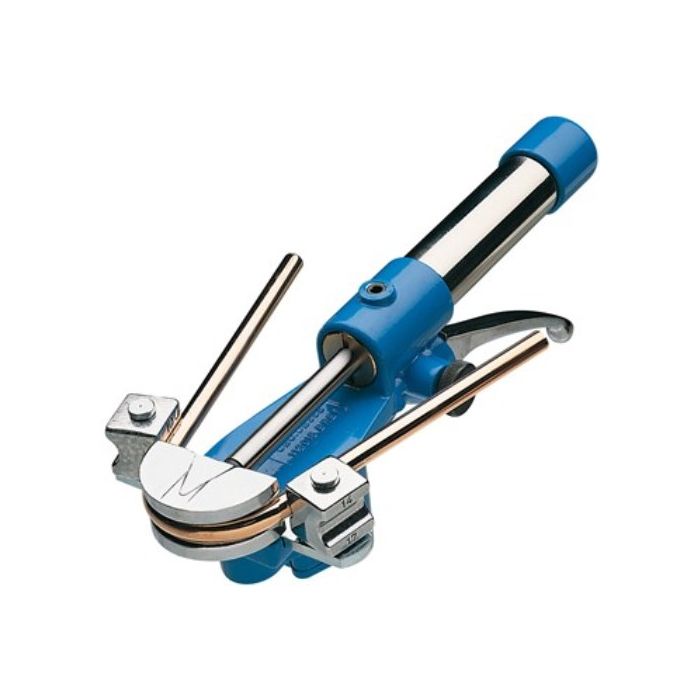

- Named for their unique crossbow shape.
- Allows bending without the need to change the tool’s position frequently.
- Used primarily in plumbing, especially for bending soft materials like copper.
- Large, industrial-grade benders.
- Equipped with a movable frame or gantry that travels along the pipe length.
- Employed in large-scale projects where long, heavy pipes need consistent bends, such as oil pipelines or industrial setups.
Heat Induction Benders
- Uses heat to make the pipe malleable before bending.
- The process involves passing an electrical current through the pipe or using external heating.
- Commonly used for large-diameter pipes in heavy industries, especially when cold bending might compromise the pipe’s integrity.
Factors to Consider When Buying a Pipe Bender:
- Capacity: Ensure the bender can handle the size and thickness of the pipes you’ll be working with.
- Versatility: Some benders come with interchangeable dies, allowing them to work on various pipe sizes and shapes.
- Portability: If you need to move the bender between job sites, consider its weight and whether it comes with features like wheels.
- Accuracy: For precision tasks, you might need a CNC or electromechanical bender.
- Cost: While high-end benders offer more features and precision, they also come at a premium. Consider your budget and requirements.
Environment and Usage:
Remember that not all benders are suited for all environments:
- For on-site tasks, portable manual or hydraulic benders might be more suitable.
- For industrial applications where large numbers of pipes need to be bent daily, an automated CNC or electromechanical bender might be more apt.
Factors Impacting Pipe Bending Quality
- Wall Thickness: Thicker walls resist deformation better.
- Material Composition: Materials like copper are more malleable than stainless steel.
- Internal Support: Using internal supports like mandrels can prevent pipe collapse.
The Evolution of Pipe Benders
As industries have advanced, so have the tools. Today’s pipe benders are:
- More Ergonomic: Reduced physical strain on operators.
- Digitally Integrated: Many modern benders offer connectivity options for better workflow.
- Eco-friendly: Reduced energy consumption and waste.
Why Pipe Bending Techniques Matter
- Cost-Efficiency: Proper bending reduces the need for multiple fittings, saving costs.
- Integrity Preservation: Using the correct bender and technique ensures the pipe retains its strength post-bending.
- Aesthetics: Smooth bends are crucial in projects where pipes are visible, like in architecture or design.
Linquip’s Added Value in the Selection Process
Beyond just listing tools, Linquip provides invaluable insights:
- In-depth Reviews: Real users share their experiences, offering a clear picture of product performance.
- Manufacturer Details: Detailed specs, warranty information, and direct links to manufacturers.
- Custom Recommendations: Based on individual requirements, Linquip suggests the most suitable pipe benders.
Every project has unique requirements, and the choice of a pipe bender can significantly influence the outcome. From compact bench-mounted options to robust gantry-style benders, understanding the tools at your disposal is paramount. Linquip serves not only as a directory of tools but also as a hub of knowledge, facilitating smarter decisions. As industries evolve, so does the need for precision and efficiency. With Linquip as a partner, staying at the forefront of technological advancements and best practices is no longer a challenge but a standard.
