DS-3000
Download HI-VAWT DS-3000 Small Vertical Wind Turbine PDF Catalog

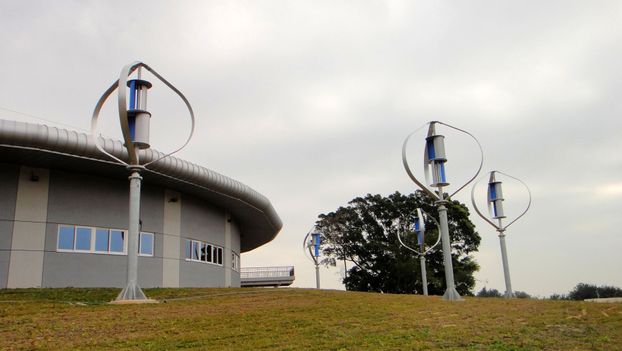

All DS Series vertical axis wind turbines are integrated with both Savonius and Darrieus that offsets the disadvantage over each other. All DS-Series wind turbines are equipped with specially designed power controllers with built-in MPPT function to maximize power generation. For safety control purposes, both DS-3000W and DS-1500W also equipped a specially designed control box. With integrated lift and drag type of design to provide low wind self-start and high wind efficiency.

  • Excellent wind direction adaptability

  • Excellent turbulence compliance

  • Excellent high wind efficiency

  • Advance generator design

  • Extremely silent

HI-VAWT DS-3000 Small Vertical Wind Turbine Specifications:

  • Power (kW)

    3

  • Height (m)

    8.16

  • Weight (kg)

    680
  • Operating Temperature
    -20 to 40°C
  • Number of Blades
    3
  • Rotor Diameter (m)
    4
  • Cut-in (m/s)
    3
  • Cut-out (m/s)
    15
  • Speed (m/s)
    12

  • Operating Temperature

    -20 to 40°C

  • Number of Blades

    3

  • Rotor Diameter (m)

    4

  • Cut-in (m/s)

    3
