MS5001

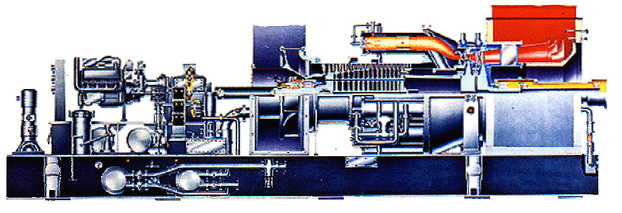

The MS5001 single shaft turbine is a compact heavyduty turbine designed for long life and easy maintenance. The MS5001 gas turbine is the ideal solution for industrial power generation where low maintenance, reliability and economy of fuel utilization are required. Low investment costs make the MS5001 package power plant an economically attractive system for peak load generation. The MS5001 is ideally suited for cogeneration achieving very high fuel utilization indexes Typical applications are industrial plants for cogeneration of power and process steam or in district heating systems.


GE Gas Turbine MS5001 Specifications:

  • Power (MW)

    26.3
  • Fuel

    Natural Gas
  • Frequency (Hz)

    50/60
  • Efficiency (%)
    26.3
  • Heat-rate (kJ/kWh)
    12650
  • Speed (RPM)
    5100
  • Exhaust mass flow (kg/s)
    124.1
  • Exhaust Temperature (C)
    487
  • Weight (kg)
    87430
  • Series
    Fram 5
  • Efficiency (%)

    26.3
  • Heat-rate (kJ/kWh)

    12650
  • Speed (RPM)

    5100
  • Exhaust mass flow (kg/s)

    124.1
