18V48/60
Download MAN 18V48/60 Marine Engine PDF Catalog

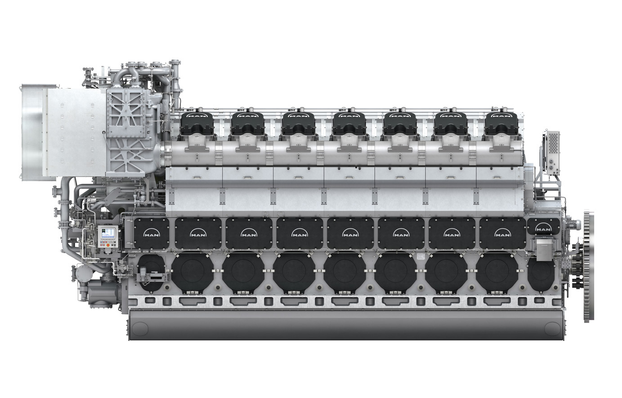

Both economical and environmentally friendly, the MAN 48/60 is a prime mover in the truest sense. With a power output range of 12,600 to 18,900 kW, this reliable, high-output engine is the four-stroke heart of medium and large diesel power plants the world over.

  • Reliable power output

  • Rugged engine block

  • Cylinder liner with fire ring

  • Stepped piston

  • Sophisticated fuel injection

MAN 18V48/60 Marine Engine Specifications:

  • Dimensions [L × W × H] (mm)

    13148 x 4700 x 6530

  • Speed (RPM)

    500

  • Power (kW)

    18900
  • Bore (mm)
    480
  • Stroke (mm)
    600
  • Displacement (liter)
    1954.8
  • Cooling
    Water-cooled
  • Cylinders
    18
  • Weight (t)
    375
  • Aspiration
    Turbocharged

  • Bore (mm)

    480

  • Stroke (mm)

    600

  • Displacement (liter)

    1954.8

  • Cooling

    Water-cooled
