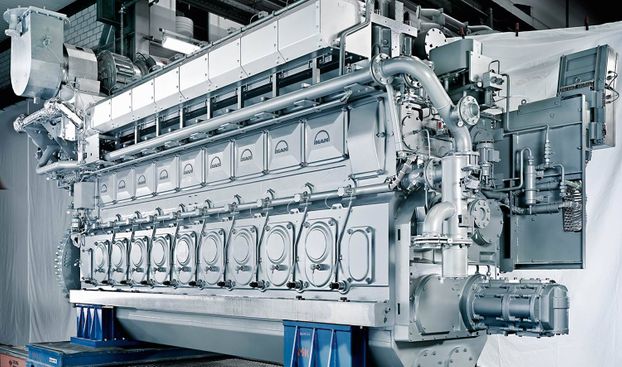

7L32/40
Download MAN 7L32/40 Marine Engine PDF Catalog
The “Work Horse” 32/40 is in service 24 hours a day. With a power output range of 3,000 to 9,000 kW, it is ideal for small and medium-sized applications. The precision and smooth interaction of critical reciprocating components result in low wear rates and long maintenance intervals. A notable reduction in NOx, CO2, and soot emissions is a strategical factor for the success of modern diesel engines. The 32/40 combined all relevant features to significantly reduce harmful emissions.
  • Advanced electronic fuel injection equipment

  • High-efficiency exhaust gas turbochargers

  • Service friendly design

  • Low emissions and low operating costs

  • New piston for increased compression ratio

MAN 7L32/40 Marine Engine Specifications:

  • Dimensions [L × W × H] (mm)

    6470 x 2630 x 4010
  • Speed (RPM)

    750
  • Power (kW)

    3500
  • Bore (mm)
    320
  • Stroke (mm)
    400
  • Displacement (liter)
    225.4
  • Fuel Consumption (g/kWh)
    185
  • Cooling
    Water-cooled
  • Cylinders
    7
  • Weight (t)
    42
  • Aspiration
    Turbocharged
  • Bore (mm)

    320
  • Stroke (mm)

    400
  • Displacement (liter)

    225.4
  • Fuel Consumption (g/kWh)

    185
