20V28/33D STC
Download MAN 20V28/33D STC Marine Engine PDF Catalog

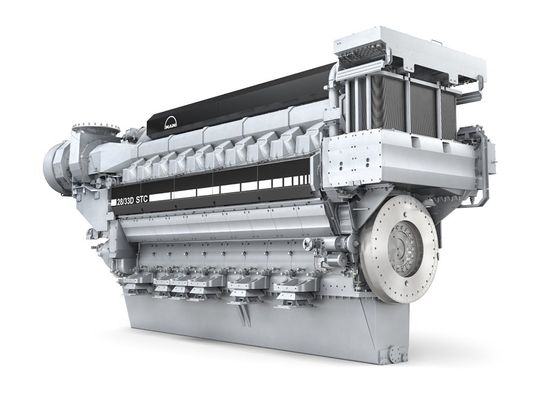

For over a century, MAN Diesel & Turbo has focused its efforts on developing and improving engines that meet propulsion and power generation requirements. This dedicated approach has resulted in engine types like the MAN 28/33D STC. It has allowed MAN Diesel & Turbo to create a whole engine range to meet a broad scope of marine propulsion requirements, many of which - taken together - have previously meant making compromises. Not so with the MAN 28/33D STC, as there's no need to compromise. The pinnacle of sophisticated engineering, this range offers 12-, 16-, and 20- cylinder configurations covering power requirements of up to 10,000kW per unit. It also happens to be the most powerful and fuel-efficient 1,000 rpm diesel engine in the world.
  • Efficient, clean, compact

  • High reliability

  • High operating efficiency at low and high power

  • Low acoustic and thermal signature characteristics

  • Extended operation at low loads without white smoke or maintenance impact

MAN 20V28/33D STC Marine Engine Specifications:

  • Dimensions [L × W × H] (mm)

    8047 x 2473 x 3734
  • Speed (RPM)

    1000
  • Power (kW)

    9100
  • Bore (mm)
    280
  • Stroke (mm)
    330
  • Displacement (liter)
    406
  • Fuel Consumption (g/kWh)
    183
  • Cooling
    Water-cooled
  • Cylinders
    20
  • Weight (t)
    52.9
  • Aspiration
    Turbocharged
  • Bore (mm)

    280
  • Stroke (mm)

    330
  • Displacement (liter)

    406
  • Fuel Consumption (g/kWh)

    183
